Rancho RS999044 RS9000XL Adjustable Unit

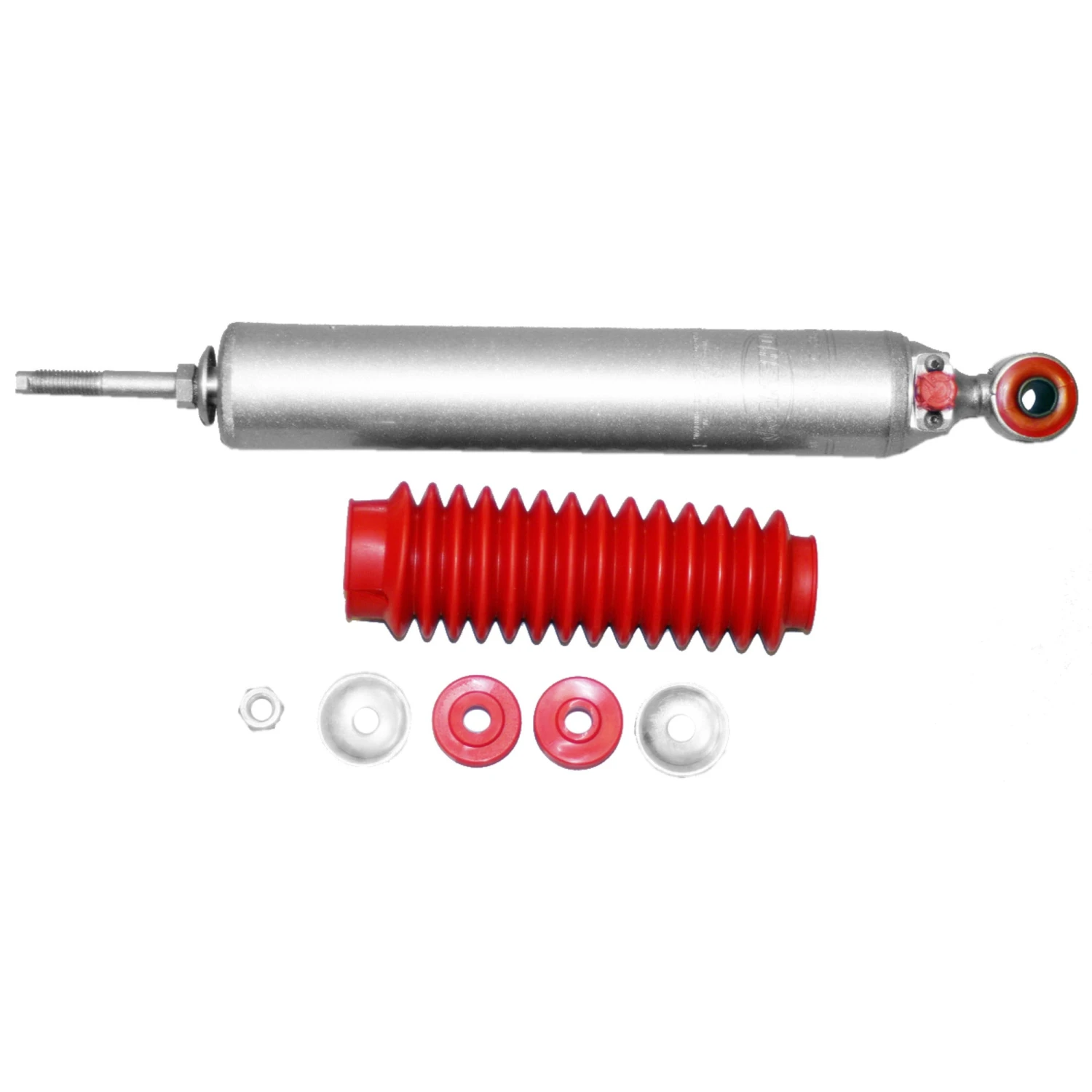

Rancho 9000XL Shock RS999044

Upgrade your Dodge Ram 2500, Ram 3500, Ford F-250 Super Duty, F-350 Super Duty, Ram 2500, 3500’s performance and versatility with Rancho 9000XL Shock RS999044, the first nine-position manually adjustable shocks in the off-road market. These high-performance shocks are designed for trucks, SUVs, and Jeeps that demand flexibility for towing, hauling, or tackling rough terrains. With its large shock body and advanced engineering, the Rancho 9000XL provides exceptional damping control and performance in all conditions.

Features of the RS999044:

• Nine-Position Adjustable Damping: The easy-to-use knob allows you to customize the damping settings with nine levels of control, perfect for adapting to both on-road and off-road conditions.
• Large Shock Body (up to 2.75 inches): The oversized body helps the shock run cooler, delivering consistent performance even under demanding conditions.
• Nitrogen Gas Pressurization (120 PSI): Minimizes air-to-oil mixing, reducing fade and maintaining consistent damping performance by preventing foaming.
• Heavy-Duty Construction: Features an 18mm nitro-carburized piston rod to resist corrosion and scuffs, with double-welded loops for enhanced durability in stress areas.
• Temperature-Resistant Design: Built to handle extreme temperature changes, with an internal fluid that remains effective from -40°F to 248°F.
• Greater Durability and Protection: This product includes a polyvinyl boot to protect the shock rod and oil seal from damage and a premium liquid metallic finish for long-lasting durability.

Benefits of the RS999044:

• Customizable Ride Comfort: Nine positions allow you to adjust the damping to your liking, ensuring the exact balance of firmness and comfort, whether you’re on the highway or off the beaten path.
• Improved Control and Stability: The large shock body and advanced design ensure your vehicle remains steady and responsive, even with larger tires and heavier loads.
• Extended Shock Life: With a self-lubricating seal and protective boot, these shocks are built to last and provide reliable performance over the long term.
• Improved Off-Road Performance: Ideal for lifted or stock vehicles, these shocks are designed to handle the additional unsprung mass of larger wheels, ensuring smoother rides even on rough terrains.

Specifications of the RS999044:

• Active or Passive Suspension: Passive
• Adjustable Damping: Yes
• Air Adjustable: No
• Air Ride Suspension: No
• Bearing Plate Included: No
• Body Color: Silver
• Body Diameter (in): 2.38
• Body Diameter (mm): 60.5
• Boot Included: Yes
• Coil Over Springs Included: No
• Color: Silver
• Compressed Length (in): 15.95
• Compressed Length (mm): 405.1
• Cylinder Color: Silver
• Cylinder Material: Steel
• Damping Adjustment Type: Manual
• Dust Shield Color: Red
• Dust Shield Diameter (in): 2.99
• Dust Shield Diameter (mm): 75.9
• Dust Shield Included: Yes
• Dust Shield Material : Rubber
• Extended Length (in): 24.6
• Extended Length (mm): 624.8
• Finish: Painted
• Gas Charged: Yes
• Grade Type: Performance
• Grade Type: Progressive
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Construction Type: Tri Tube
• Internal Rebound Bumper: No
• Internal Rebound Spring: No
• Lower Mount Code: LS47
• Lower Mount Type: 0
• Mounting Hardware Included: Yes
• New Or Remanufactured: New
• Parts Pack(s): P01356
• Rod Diameter (in): 0.709
• Rod Diameter (mm): 18
• Shaft Material: Nitrocarburized
• Shock Absorber Body End Measuring Point: Base of Stem
• Shock Absorber Bore Size (in): 1.26
• Shock Absorber Bore Size (mm): 32
• Shock Absorber Rod End Measuring Point: Center of Loop
• Spring Included: No
• Spring Isolators Included: No
• Spring Seat Included: No
• Travel Length (in): 8.65
• Travel Length (mm): 219.7
• Type: Telescopic
• Upper Mount Code: S51
• Upper Mount Type: Stem Mount – 2 5/8″ Stem Length X 1/2″-13 Thread Pitch

Upgrade your vehicle with Rancho 9000XL Shock RS999044 and experience unmatched performance, control, and durability, whether you’re towing, hauling, or exploring rugged trails. These shocks are designed to handle extreme conditions and are built to last, ensuring your vehicle stays smooth and responsive in any driving environment.

For more information or to find the perfect fit for your vehicle, contact us at Shockwarehouse. We’re here to help you get the most out of your suspension system.
