Rancho RS55136 RS5000X Shock Absorber

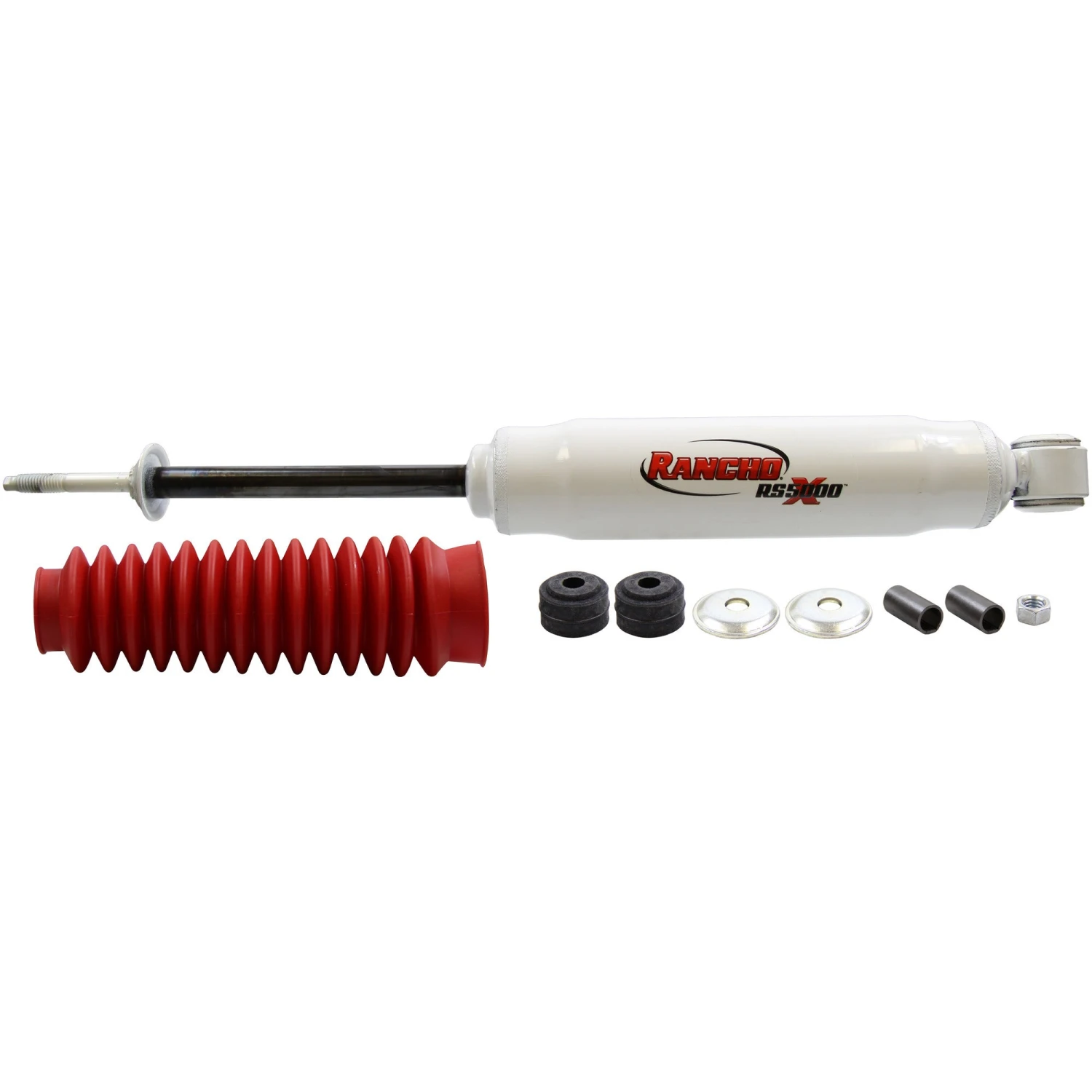

Rancho 5000X Shock RS55136

Experience improved performance and handling for your Daihatsu, Dodge, Ford, International, Mazda, Toyota with Rancho 5000X Shock RS55136, designed for both on- and off-road use. These shocks are engineered with Rancho’s exclusive Cross Tuned technology, which combines innovative rebound valving and advanced compression control to provide superior performance and a smooth, controlled ride. Ideal for trucks, SUVs, and Jeeps, these shocks offer enhanced durability and adaptability to various terrains.

Features of the RS55136:

• Cross-Tuned Technology: Rancho’s exclusive rebound valving system and advanced compression phase work together to improve handling and provide exceptional performance both on and off the road.
• Progressive Engagement Valving: Custom-tuned for each vehicle, this feature minimizes rough ride impacts at low speeds, absorbing initial bumps and preventing harsh jolts.
• 16mm Nitro-Carburized Piston Rod: Built to resist scuffs and corrosion, this durable piston rod ensures longevity and reliable performance in extreme conditions.
• Durability and Structural Integrity: Double-welded loops at stress points and a 35mm sintered iron piston enhance strength and structural integrity.
• All-Weather Fluid and Large Twin-Tube Design: The shocks are filled with all-weather fluid to keep the system cooler during operation and provide consistent control, even in extreme temperatures ranging from -40°F to 248°F.
• Polyurethane Rebound Bumper and Rubber Bushings: Designed to absorb harsh road impacts and smooth out ride quality, making your vehicle more responsive to road changes.
• Nitrogen Gas-Charged to 150 PSI helps prevent damping performance fade by minimizing the air-to-oil mixture and maintaining smooth shock performance even on long trips or rough terrain.

Benefits of the RS55136:

• Improved Ride Quality: Cross-tuned technology and Progressive Engagement Valving provide a smoother ride, reducing harsh impacts at low speeds and ensuring consistent control on rough surfaces.
• Superior Durability: With corrosion-resistant materials, these shocks are built to last, providing long-term protection and durability for your vehicle.
• Increased Vehicle Control: The Compression Control Valve regulates fluid transfer, ensuring better impact absorption and control during shock motion.
• Smooth Performance in Any Condition: Whether driving in extreme heat or cold, the all-weather fluid and durable design ensures your vehicle maintains smooth performance regardless of the conditions.

Specifications of the RS55136:

• Active or Passive Suspension: Passive
• Adjustable Damping: No
• Air Adjustable: No
• Air Ride Suspension: No
• Bearing Plate Included: No
• Body Color: White
• Body Diameter (in): 2.25
• Body Diameter (mm): 57.2
• Boot Included: Yes
• Coil Over Springs Included: No
• Color: White
• Compressed Length (in): 11.25
• Compressed Length (mm): 285.8
• Cylinder Color: White
• Cylinder Material: Steel
• Dust Shield Color: Red
• Dust Shield Diameter (in): 2.99
• Dust Shield Diameter (mm): 75.9
• Dust Shield Included: Yes
• Dust Shield Material : Rubber
• Extended Length (in): 17.44
• Extended Length (mm): 443
• Finish: Painted
• Gas Charged: Yes
• Grade Type: Performance
• Grade Type: Progressive
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Construction Type: Twin Tube
• Internal Rebound Bumper: Yes
• Internal Rebound Spring: No
• Lower Mount Code: L1
• Lower Mount Type: 0
• Mounting Hardware Included: Yes
• New Or Remanufactured: New
• Parts Pack(s): P01134,P00910
• Rod Diameter (in): 0.622
• Rod Diameter (mm): 15.8
• Shaft Material: Nitrocarburized
• Shock Absorber Body End Measuring Point: Base of Stem
• Shock Absorber Bore Size (in): 1.378
• Shock Absorber Bore Size (mm): 35
• Shock Absorber Rod End Measuring Point: Center of Loop
• Spring Included: No
• Spring Isolators Included: No
• Spring Seat Included: No
• Travel Length (in): 6.19
• Travel Length (mm): 157.2
• Type: Telescopic
• Upper Mount Code: S4
• Upper Mount Type: 0

Upgrade your vehicle with Rancho 5000X Shock RS55136 to enjoy improved handling, control, and comfort on any terrain. Perfect for drivers looking for enhanced off-road performance without sacrificing on-road comfort, these shocks provide the reliability and performance you need.

For more information or to find the perfect fit for your vehicle, contact us at Shockwarehouse. We’re here to help you get the most out of your suspension system.
