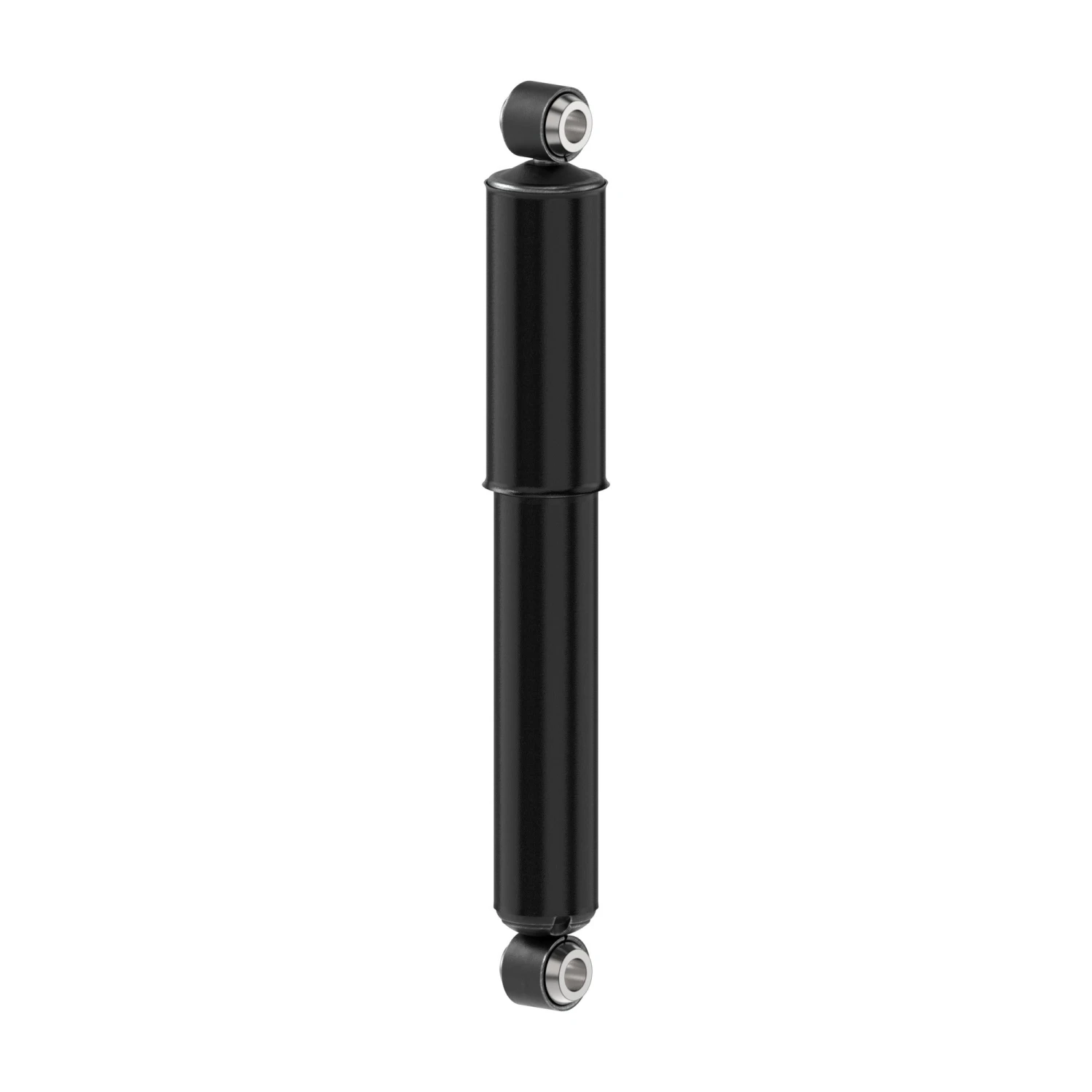

Monroe 65101 Front GasMagnum Shock Absorber Peterbilt

Monroe Magnum Heavy Truck Shock 65101

Optimize the performance of your Kenworth W990, Peterbilt 320, 357 with Monroe Magnum Heavy Truck Shock 65101. These shocks are designed to withstand the most demanding conditions and provide superior durability, control, and comfort, making them ideal for heavy-duty applications. Whether hauling heavy loads or navigating rough terrain, Monroe Magnum Shocks ensures your vehicle maintains a smooth and controlled ride.

Features of the 65101:

• Double-Action Valving System: This advanced system operates in compression and rebound to deliver precise and safe handling, enhancing vehicle stability and driver confidence.
• Premium Construction: Built from high-quality materials, these shocks are engineered to perform in the most demanding environments and offer a long service life.
• Anti-Wear Coated Piston Ring: Provides consistent shock response and exceptional wear resistance, ensuring reliable performance.
• High-Temperature Resistant Hydraulic Fluid: This fluid utilizes a semi-synthetic fluid that maintains excellent damping characteristics across a wide range of temperatures, from extreme cold to intense heat.
• Hydraulic Lockout Piston: This piston prevents the overextension of the air suspension bellows, protecting your suspension from potential damage during extreme movements and eliminating the need for an additional external suspension droop limiter.

Benefits of the 65101:

• Exceptional Durability: Designed to last longer under heavy-duty conditions, these shocks are perfect for trucks that operate in demanding environments.
• Better Ride Control: The double-action valving and high-temperature fluid ensure a smooth and controlled ride, reducing driver fatigue and improving safety.
• Improved Suspension Protection: The hydraulic lockout piston feature prevents damage to your air suspension system, ensuring your vehicle remains in peak condition.
• Extended Tire Life: By maintaining consistent tire contact with the road, these shocks help reduce abnormal tread wear and extend tire life.
• Comfort and Safety: Provides a more comfortable ride by minimizing road vibrations and shocks, making long drives more manageable for operators.

Specifications of the 65101:

• Adjustable Damping: No
• Color: Black
• Compressed Length (IN): 12.6875
• Compressed Length (MM): 322.3
• Dust Shield Included: Yes
• Dust Shield Material : Metal
• Extended Length (IN): 19.6719
• Extended Length (MM): 499.7
• Finish: Painted
• Foam Cell Design: No
• Gas Charged: Yes
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Construction Type: Twin Tube
• Internal Rebound Bumper: No
• Lower Mount Code: L3
• Lower Mount Type: Loop Bushing Mount – 3/4″ Bushing ID X 1.9/16″ Bushing OAL
• Part Description: Shock Absorber
• Parts Pack(s): None
• Shaft Diameter (MM): 18
• Shock Absorber Body End Measuring Point: Center of Loop
• Shock Absorber Bore Size (IN): 1.75
• Shock Absorber Bore Size (MM): 44.5
• Shock Absorber Rod End Measuring Point: Center of Loop
• Travel Length (IN): 6.984
• Travel Length (MM): 177.4
• Upper Mount Code: L3
• Upper Mount Type: Loop Bushing Mount – 3/4″ Bushing ID X 1.9/16″ Bushing OAL

Upgrade your vehicle with Monroe Magnum Heavy Truck Shock 65101 to ensure superior handling, durability, and comfort. Built to meet the needs of heavy-duty trucks, these shocks are a reliable choice for maintaining performance and safety under challenging conditions.

For more information or to find the perfect fit for your vehicle, contact us at Shockwarehouse. We’re here to help you get the most out of your suspension system.
