Monroe 34816 Rear Gas-Magnum Ram 3500

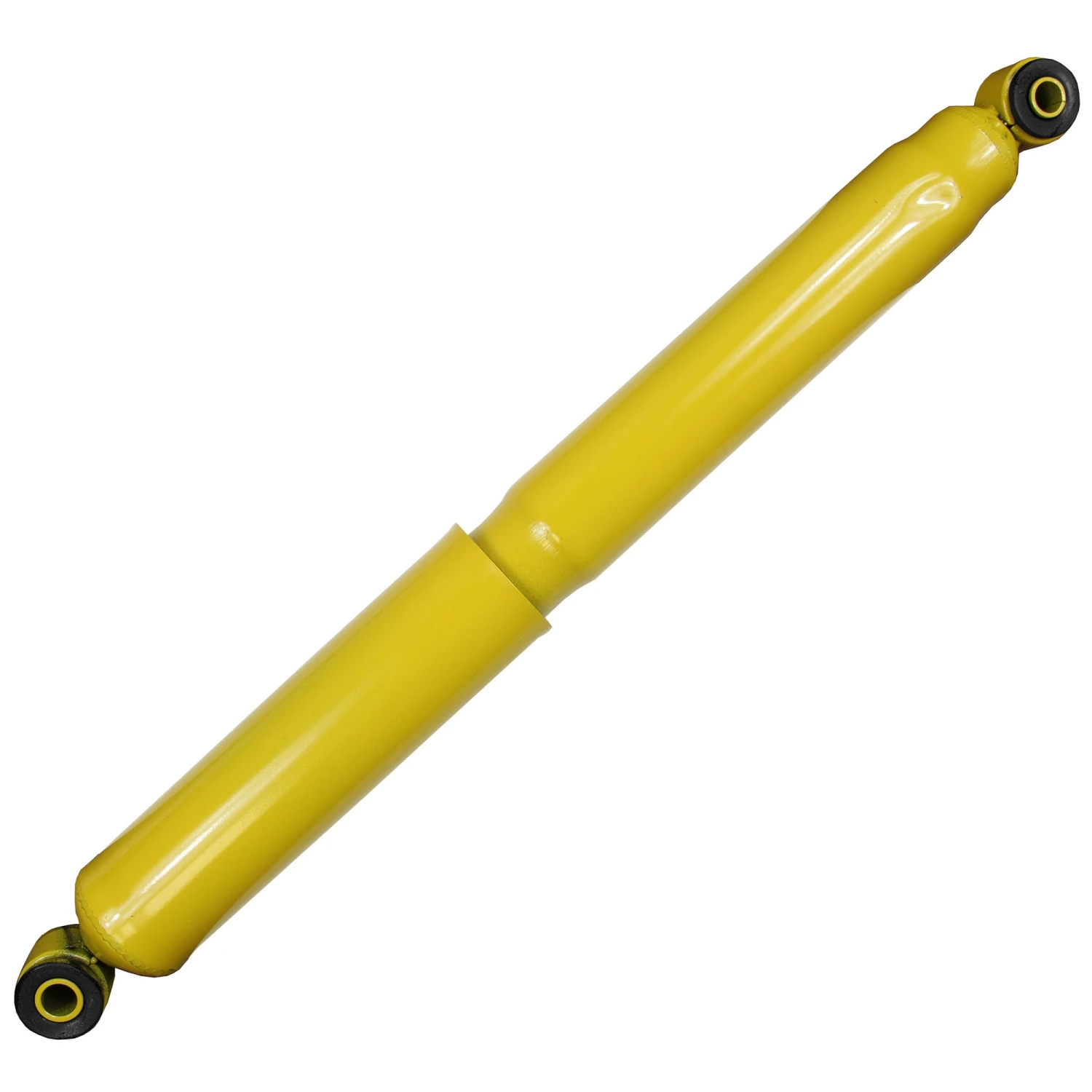

Monroe Gas-Magnum Shock 34816

Upgrade your Ram 3500 with Monroe Gas-Magnum Shock 34816, specifically designed to provide exceptional control and durability for midsize and full-size trucks and vans. These shocks are engineered to deliver a firm yet comfortable ride, making them ideal for vehicles that work hard and require consistent performance under heavy loads.

Features of the 34816:

• Heavy-Duty Construction: Built with a nitrocarburized rod and sintered iron piston, these shocks are designed to last longer by resisting wear and maintaining integrity under stress.
• Superior Durability: The self-lubricating fluid seal minimizes friction against the piston rod, reducing wear and extending the shock’s lifespan.
• Increased Oil Capacity: Featuring a larger bore and a 2-inch reserve tube, these shocks hold more oil, allowing for greater damping capacity and a smoother ride.
• Nitrogen Gas-Charged Design: Helps maintain optimal tire-to-road contact, reducing aeration and shock fade for consistent ride quality and improved handling.
• All-Weather Performance: Equipped with OE all-weather fluid containing special modifiers to handle extreme temperatures, ensuring smooth operation regardless of the conditions.

Benefits of the 34816:

• Longer Service Life: Built to withstand the demands of heavy-duty use, these shocks offer a longer service life thanks to their robust construction and superior materials.
• Improved Ride and Handling: The full-displaced valving system provides precise control over compression cycles, delivering a more controlled ride and better handling characteristics.
• Greater Comfort: Designed to provide firm control without sacrificing comfort, ensuring a smoother ride for your Ram 3500 even under heavy loads.
• Reliability in All Conditions: The nitrogen gas charge and all-weather fluid deliver consistent performance, making these shocks suitable for various driving environments.

Specifications of the 34816:

• Body Diameter (IN): 2.251
• Body Diameter (MM): 57.2
• Compressed Length (IN): 14.46
• Compressed Length (MM): 367.3
• Dust Shield Included: Yes
• Extended Length (IN): 22.96
• Extended Length (MM): 583.2
• Gas Charged: Yes
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Rebound Bumper: Yes
• Lower Mount Code: LS47
• Lower Mount Type: Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL
• Part Description: Shock Absorber
• Parts Pack(s): None
• Shock Absorber Body End Measuring Point: Center of Loop
• Shock Absorber Rod End Measuring Point: Center of Loop
• Travel Length (IN): 8.5
• Travel Length (MM): 215.9
• Upper Mount Code: LS52
• Upper Mount Type: Loop Bushing and Sleeve Mount – 5/8″ Sleeve ID X 1.11/16″ Sleeve OAL

Equip your Ram 3500 with the Monroe Gas-Magnum Shock 34816 to experience enhanced control, comfort, and durability. Perfect for trucks and vans that handle demanding jobs, these shocks provide the reliability and performance needed to tackle any road.

For more information or to find the perfect fit for your Ram 3500, contact us at Shockwarehouse. We’re here to help you get the most out of your suspension system.
