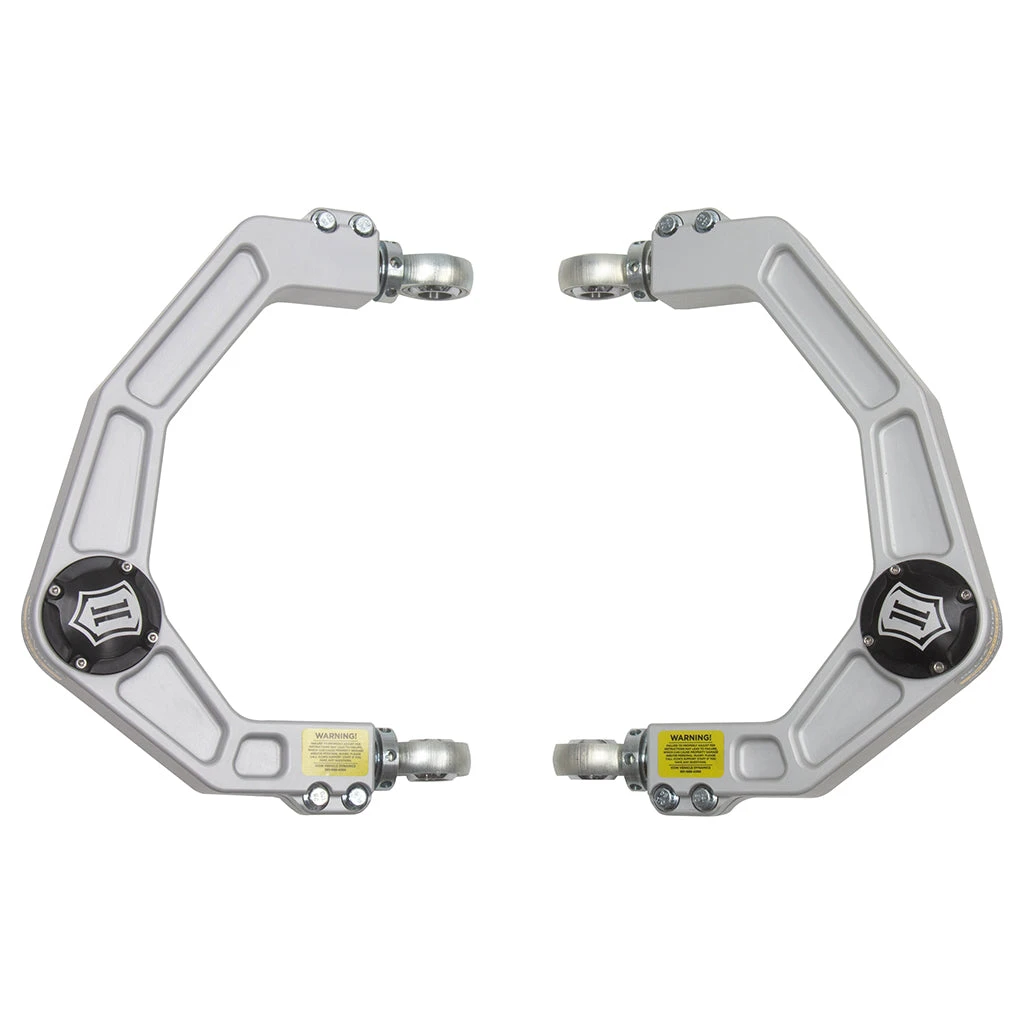

ICON 98507DJ Ford F150 Billet Upper Control Arm/Delta Joint Kit

Take the performance of your 2021-2023 Ford F150 to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. These upper control arms are designed to improve the overall performance of the F150 with corrected front-end geometry, adjustable camber and caster, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum, these control arms merge lightweight construction with high strength properties for a product that functions just as well as it looks. Replacing the OE ball joint with the included ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2021-2023 Ford F150.

FEATURES

• CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
• ICON upper control arms allow for additional wheel travel while improving suspension geometry for predictable handling
• Direct bolt-in design makes for a simple and straightforward installation
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Delta Joint upper control arms carry ICON’s exclusive 5 year limited warranty

SPECIFICATIONS

• Adjustable: Yes
• Ball Joint Included: Yes
• Ball Joint Mounting Type: Press In
• Ball Joint Stud Type: Threaded
• Bushing Material: Rod End Bearing
• Bushings Included: Yes
• Control Arm Color: Silver
• Control Arm Construction: Billet
• Control Arm Material: Aluminum
• Finish: Anodized
• Grade Type: Performance
• Grease Fitting Included: yes
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Pre-Greased: No
• Service Parts: 614555 – 01-UP GM HD/15-UP COLORADO/14-18 GM1500(LARGE TAPER) DELTA JOINT KIT
• Service Parts: 614520 – DELTA JOINT INSTALL ADAPTER AND SHIM
• Service Parts: 614554 – 04-UP F150/09-UP RAM 1500 DELTA JOINT KIT
• Suspension Grade Type: Performance

TECH NOTES

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5″ Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25″ Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625″ Backspace / 16mm Offset
• Recommended Aftermarket Tires: 34″ x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Compatible with 0-3″ of front lift over stock on most F-150 sub-models
• F-150s equipped with Dynamic Bending Headlamps also require ICON Dynamic Headlamp Kit part # 611071.
• Not compatible with models equipped with OnBoard Scales
• Not compatible with F-150s equipped with Continuously Controlled Damping (CCD) system
• Not compatible with F-150 Tremor or F-150 Raptor
