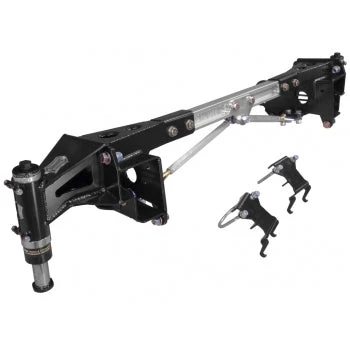

ICON 95120 Ford Raptor Rear Air Bump Kit

ICON Vehicle Dynamics’ Ford Raptor Rear Hydraulic Bumpstop System has been through extensive R&D, testing, and tuning before ICON could introduce a product we were confident in labeling the most comprehensive Raptor bumpstop solution on the market.

FEATURES

• Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
• Easy bolt on installation without having to remove the truck bed
• 6061 Solid billet cross bar that is polished & anodized
• Bumpstop striker pad does not require leaf spring disassembly
• Comfortable on road manners with sufficient damping capability under extreme load
• Hydro-pneumatic bumpstop increases bump energy capacity
• Velocity sensitive hydraulic bumpstop increases the amount of energy absorbed the faster it is hit
• Reduces rear end kick and improves overall performance
• Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off road use
• Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
• Increases frame rigidity and improves overall vehicle dynamics
• Industry first billet cross beam
• Pre-tuned and Nitrogen charged for most Ford Raptors
• Integrated adjustability for future ICON Raptor specific products
• Linear-digressive piston which compliments a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
• CAD Plated body for corrosion free service
• Urethane rod seal and wiper for long service life
• User serviceable and tunable

SPECIFICATIONS

• Attachment Type: Bolt On
• Bumper Material: Hydraulic
• Bumper Type: Hydraulic
• Color: Black
• Diameter (IN): 2
• Grade Type: Performance
• Length (IN): 2.5
• Mounting Hardware Included: yes
• Service Parts: 202004 – 2.0 AIR BUMP REBUILD KIT
