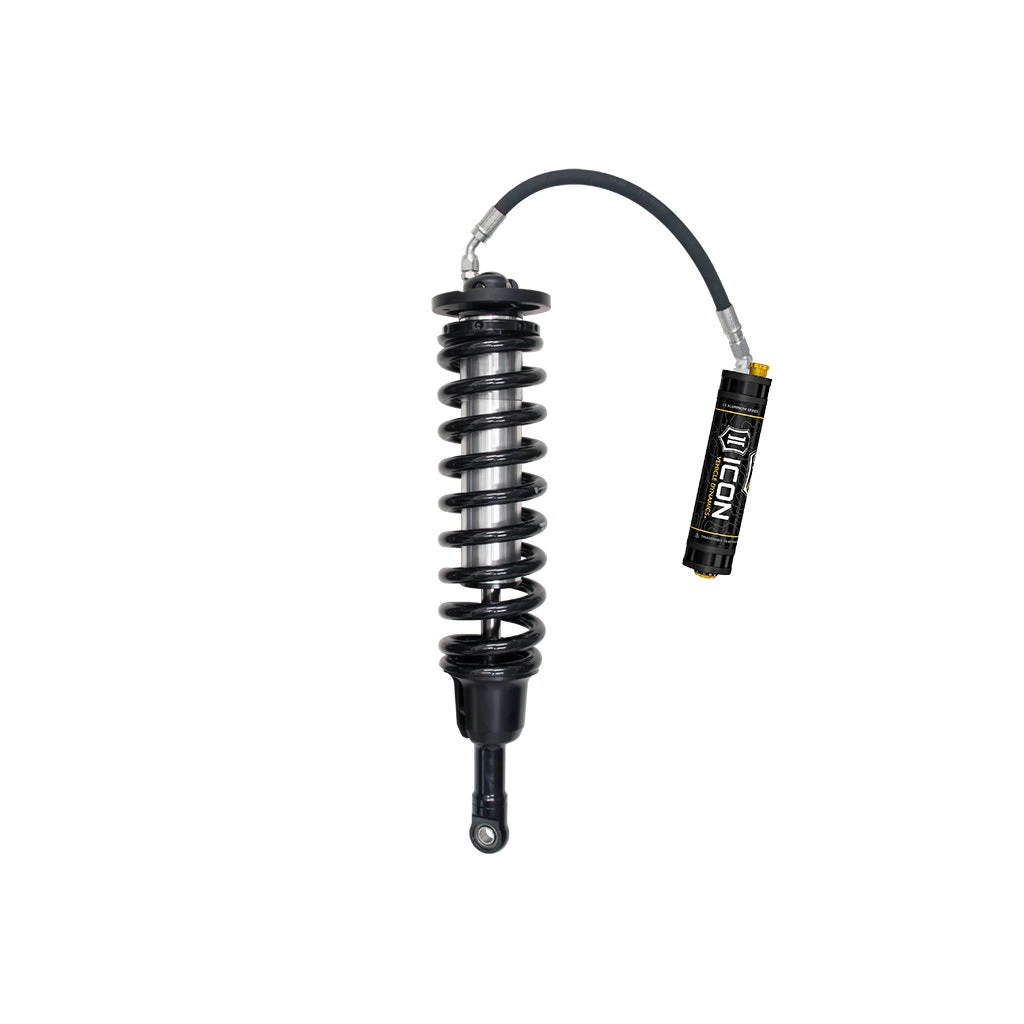

ICON 95000R Ford Raptor Front 3.0 VS Remote Reservoir/CDCV Coilover Passenger

ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford SVT Raptor was the first production truck, designed and built, to bridge the gap between a standard street “pickup truck” and an off-road pre-runner. ICON Vehicle Dynamics new 3.0 Performance Coil-Over Shocks for the SVT Raptor were rigorously tested both on- and off-road for several months to enhance the overall performance and ride quality.

FEATURES

• 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shock
• Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
• Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
• Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
• Nitrogen Charged 6063-T832 Aluminum 10″ Remote Reservoirs that are Precision CNC Honed & Hard Anodized
• Adjustable Ride Height from 1 – 3.5″ of Lift
• ICON Engineered Eibach 3 5/8″ ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance
• Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
• Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
• Oversized 1″ Heavy Duty CNC Machined Shock Shafts
• Extended Droop Travel and Increased Overall Performance on and off road

SPECIFICATIONS

• Adjustable Damping: Yes
• Adjustable Height: yes
• Body Diameter (IN): 3
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: Yes
• Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 302005 – 3.0 ICON REBUILD KIT (ALL)
• Service Parts: 611019 – COILOVER HARDWARE KIT PAIR
• Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
• Shaft Diameter (IN): 1
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

TECH NOTES

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 w/ 5″ Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 w/ 5.25″ Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35″ x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Coilovers are sold individually. Passenger side coilover part # 95000L is also required.
