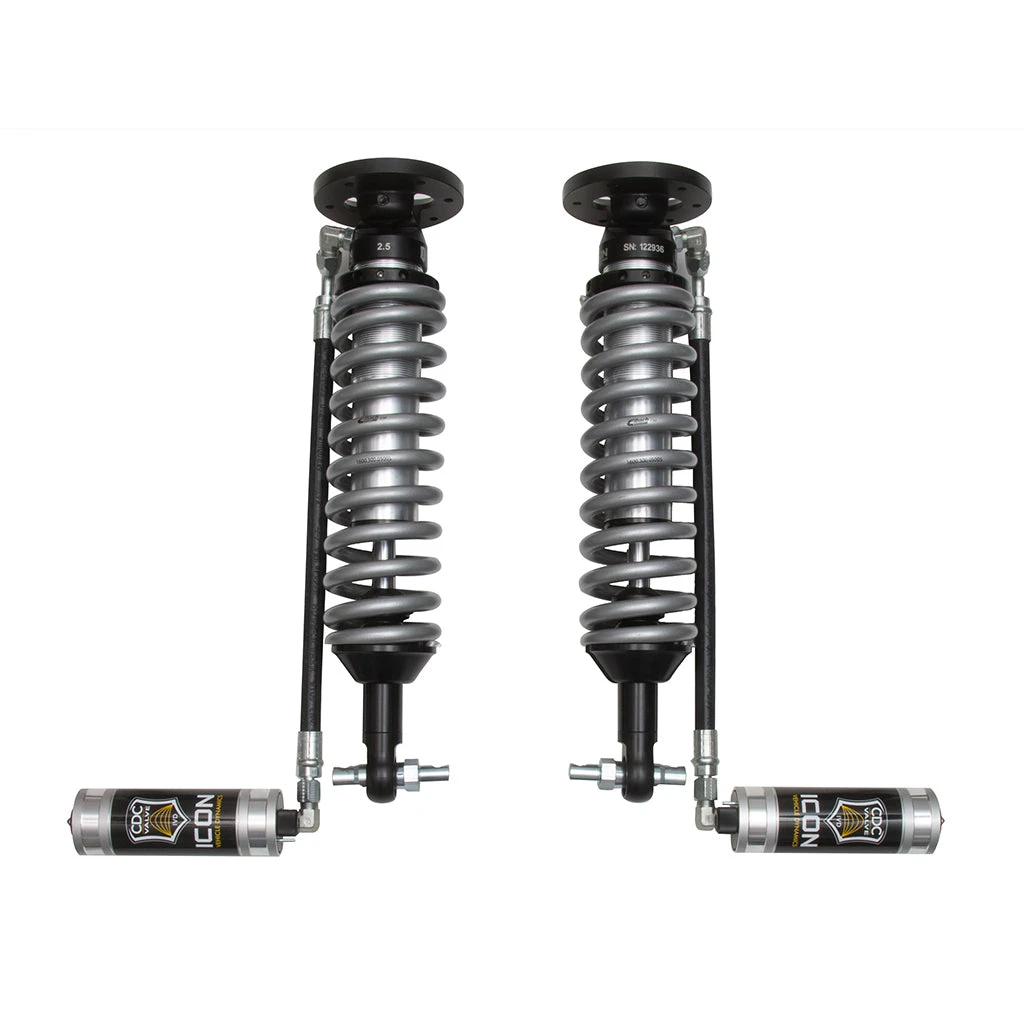

ICON 91820C Ford Expedition 4WD .75-2.25″ Lift Front 2.5 VS RR CDCV Coilover Kit

The ICON Vehicle Dynamics V.S. Series 2.5″ remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2014-2020Ford Expedition. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering .75-2.25″ of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON’s larger 2.5″ shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of adjustment from soft to hard. When paired with ICON rear 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ford Expedition.

FEATURES

• Increased wheel travel and ride quality over stock
• Unique valving developed specifically for the 2014-2020 Expedition and tuned for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for external compression damping tuneability
• Adjustable for .75″ – 2.25″ of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8″ diameter shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on – cutting or welding necessary for installation

SPECIFICATIONS

• Adjustable Damping: Yes
• Adjustable Height: Yes
• Body Diameter (IN): 2,5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Adjustment Type: Manual
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• Material: Aluminum
• Material: Steel
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: Yes
• Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 611019 – COILOVER HARDWARE KIT PAIR
• Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
• Service Parts: 257337 – 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
• Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

TECH NOTES

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00″ Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25″ Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625″ Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
