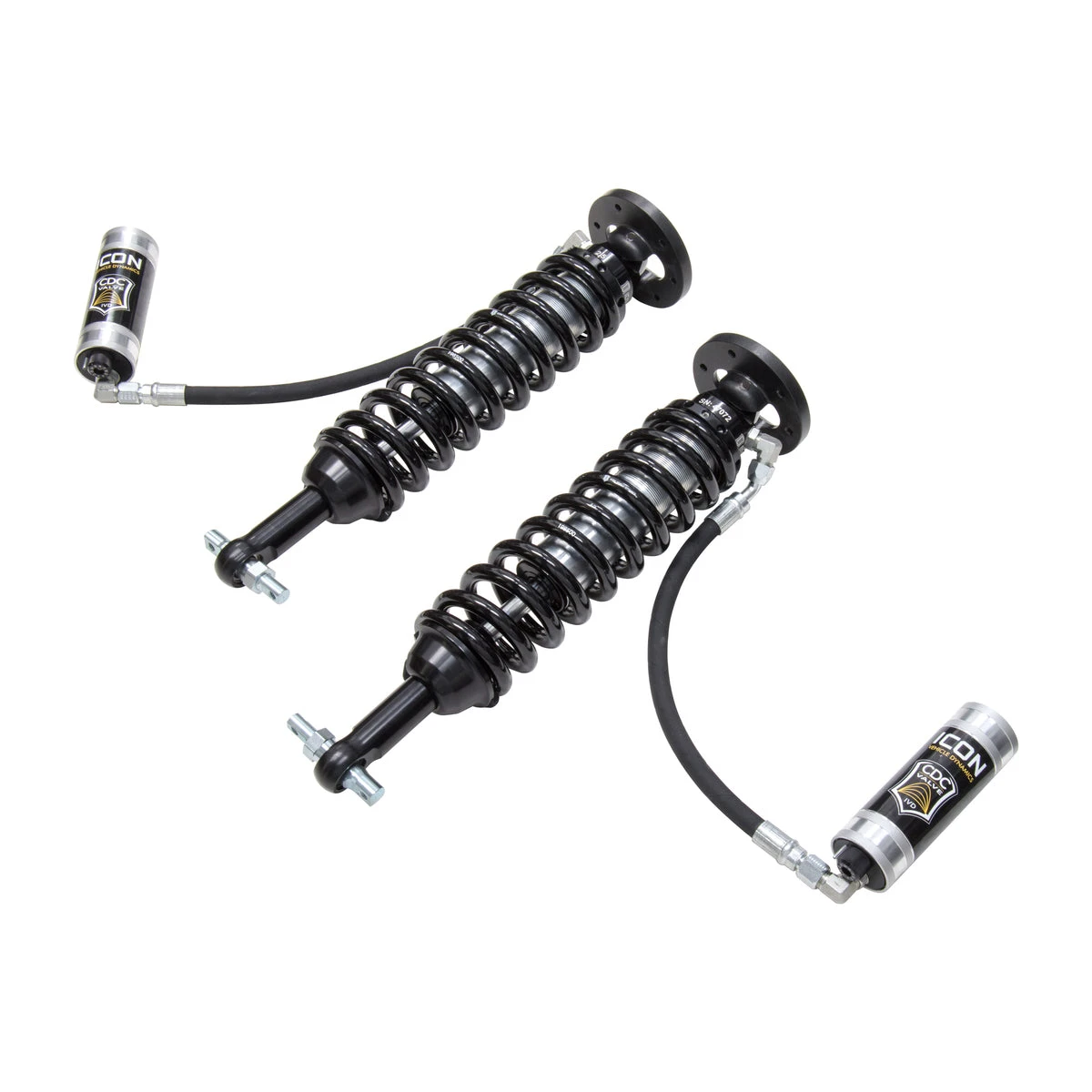

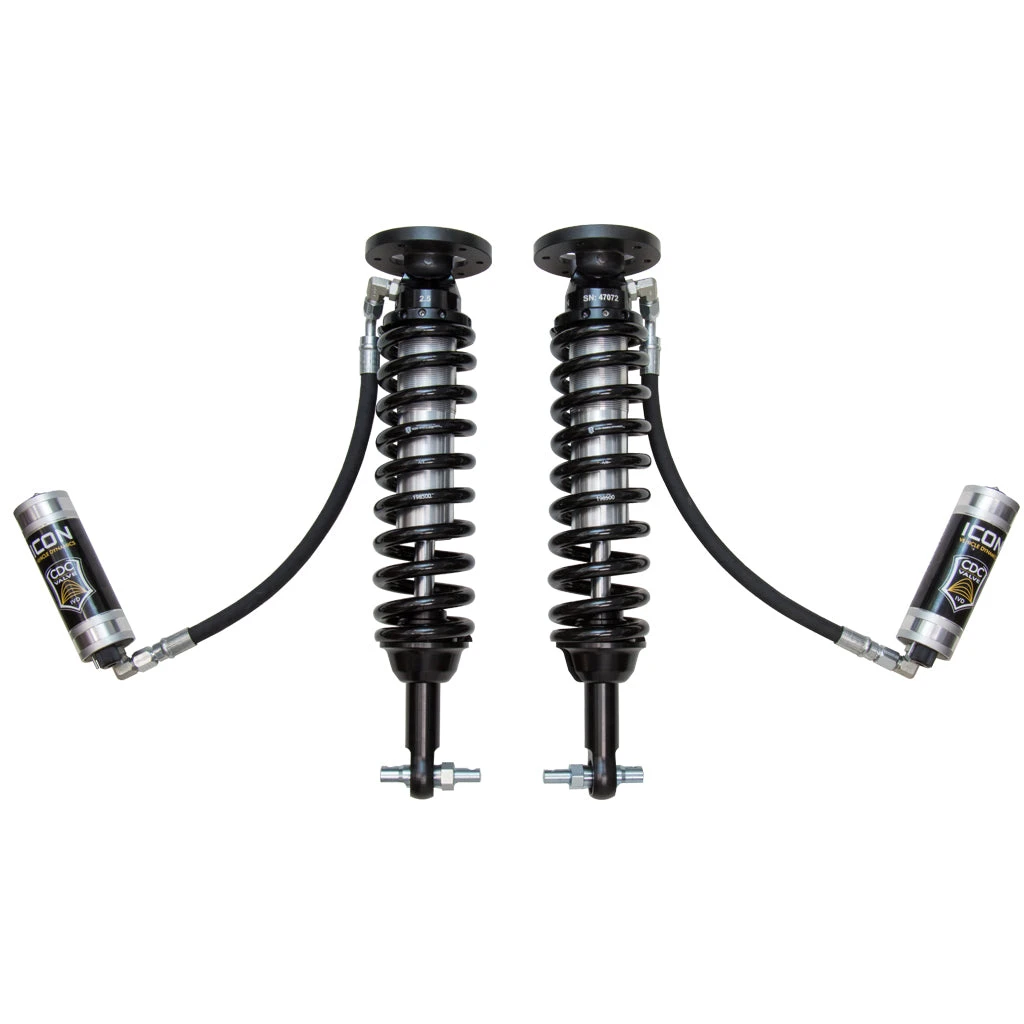

ICON 91816C Ford F150 2WD 1.75-3″ Lift Front 2.5 VS RR/CDCV Coilover Kit

The ICON Vehicle Dynamics V.S. Series 2.5″ remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2015-2020 Ford F-150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-3″ of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON’s larger 2.5″ shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2015-2020 F-150 2WD.

FEATURES

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• External reservoirs to attain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for external tuneability of your shocks
• Adjustable 1.75-3″ lift height
• ICON engineered Eibach Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8″ shaft
• High strength alloy CNC machined lower bar pinFK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on – no cutting or welding necessary for installation

SPECIFICATIONS

• Adjustable Damping: Yes
• Adjustable Height: Yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• Material: Aluminum
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: Yes
• Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 257337 – 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
• Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
• Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
• Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 611019 – COILOVER HARDWARE KIT PAIR
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00″ Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25″ Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625″ Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Only compatible with rear wheel drive (2WD/RWD) models
• Models equipped with Power-Stroke diesel engines will have lift height range of 1.25-2.5″ over stock
• Lift heights above 2″ over stock may require aftermarket front upper control arms to maintain proper alignment
