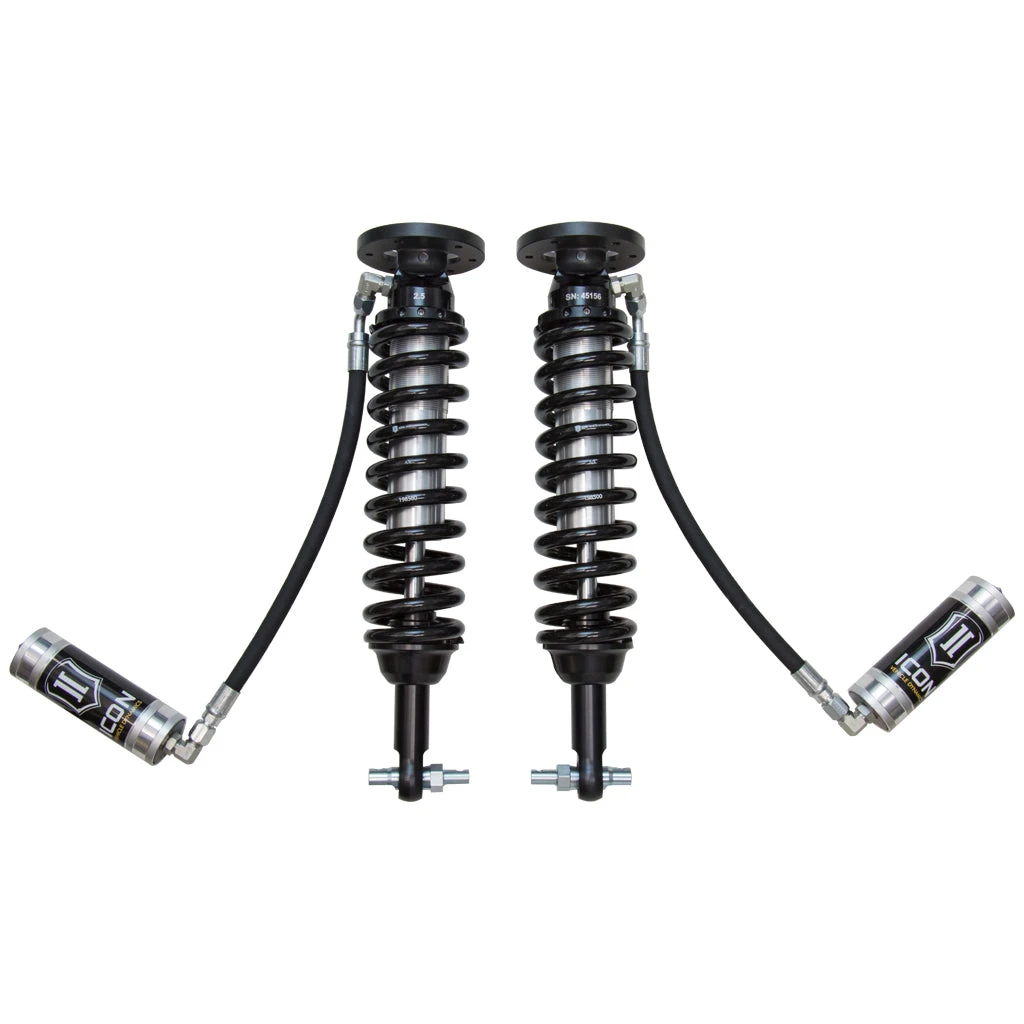

ICON 91815 Ford F150 2WD 1.75-2.63″ Lift Front 2.5 VS Remote Reservoir Coilover Kit

ICON Vehicle Dynamics V.S. Series 2.5″ remote reservoir coilover shocks are an incredible upgrade for the front end of the 2014 Ford F150 2WD. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-2.63″ of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5″ shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5″ Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F150.

FEATURES

• Increased wheel travel over stock
• Vehicle specific tuned front shocks for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended off-road use
• Improved ride quality over stock both on and off-road
• Height-adjustable coilovers offer 1.75-2.63″ of lift height adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8″ induction hardened, chrome plated shaft
• High strength alloy CNC machined lower bar pIN
• FK Rod End bearings for extended longevity and minimal deflection
• 100% Bolt-on – no cutting or welding necessary for installation

SPECIFICATIONS

• Adjustable Damping: NO
• Adjustable Height: yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: Yes
• Service Parts: 611019 – COILOVER HARDWARE KIT PAIR
• Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
• Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
• Service Parts: 257337 – 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
• Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

TECH NOTES

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00″ Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25″ Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625″ Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
