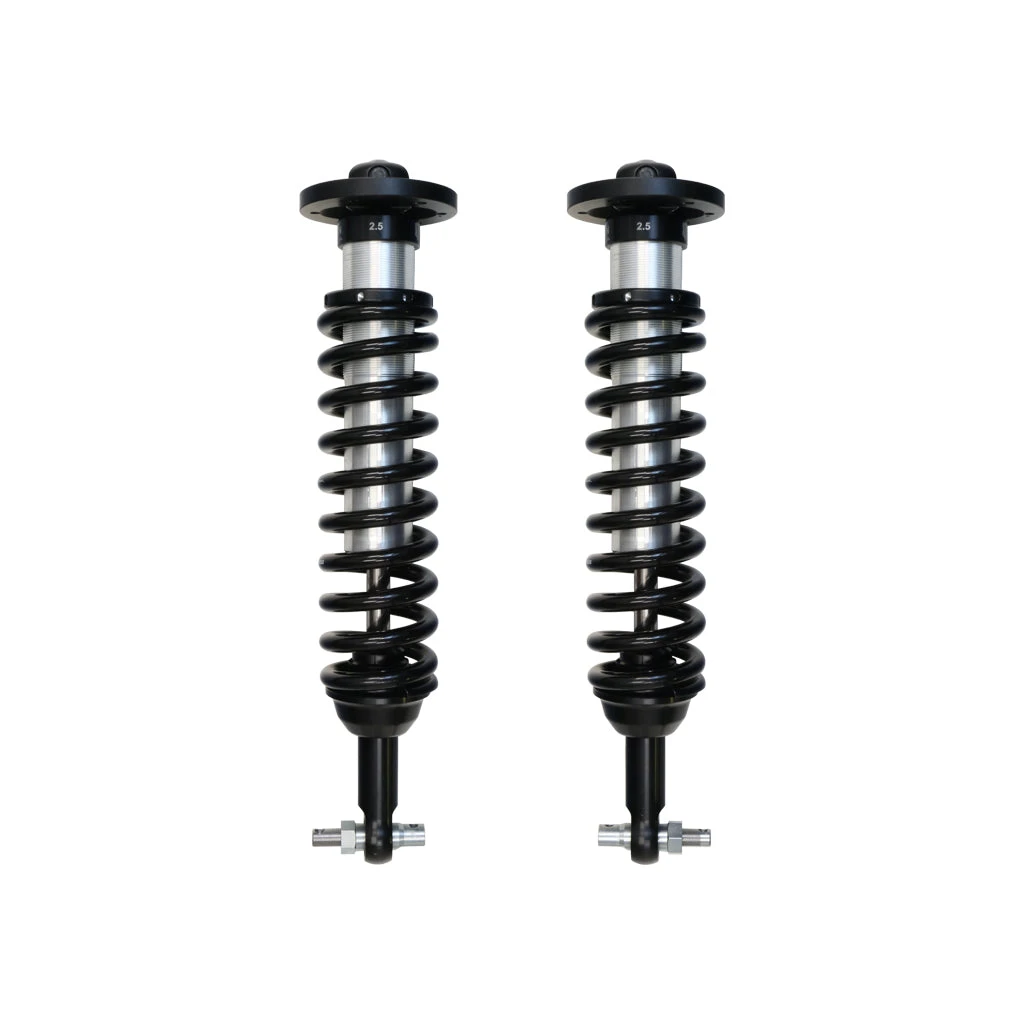

ICON 91615 Ford F150 2WD 0-263″ Lift Front 2.5 VS Coilover Kit

ICON Vehicle Dynamics V.S. Series 2.5″ coilover shocks are an incredible upgrade for the front end of 2014 F150 2WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 0-2.63″ of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5″ shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F150 truck.

FEATURES

• Increase in wheel travel over stock
• Vehicle specific tuned front shocks for superior shock damping and control
• Improved ride quality over stock both on and off-road
• Height-adjustable coilovers offer 0-2.63″ of lift height adjustment
• ICON engineered coil springs
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8″ induction hardened, chrome plated shafts
• High strength alloy CNC machined lower bar pin
• FK Rod End bearings for extended longevity and minimal deflection
• 100% Bolt-on – no drilling or welding necessary for installation

SPECIFICATIONS

• Adjustable Damping: NO
• Adjustable Height: yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: NO
• Service Parts: 252004 – ECONOMY NEEDLE CHARGING TOOL
• Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 257337 – 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
• Service Parts: 611019 – COILOVER HARDWARE KIT PAIR
• Service Parts: 252010 – 2.5 IFP REBUILD KIT
• Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

TECH NOTES

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00″ Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25″ Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625″ Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
