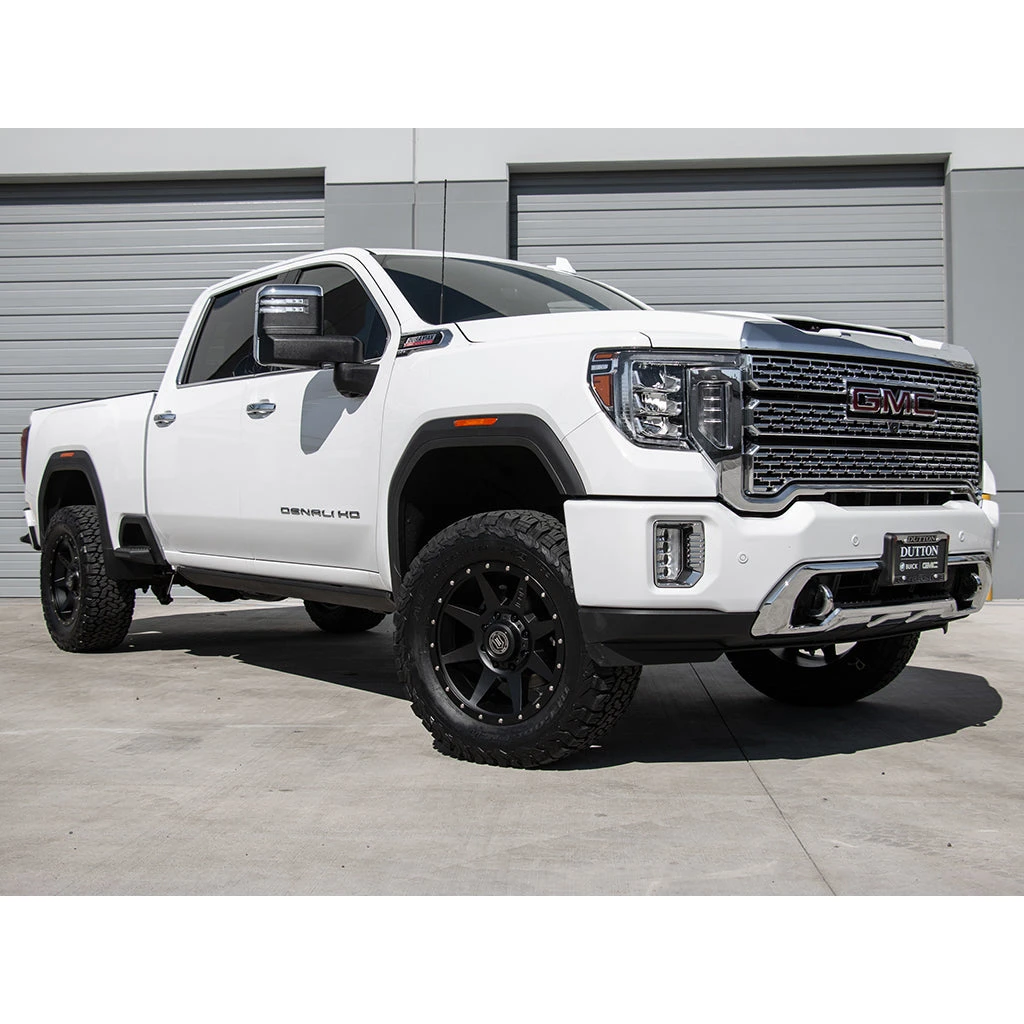

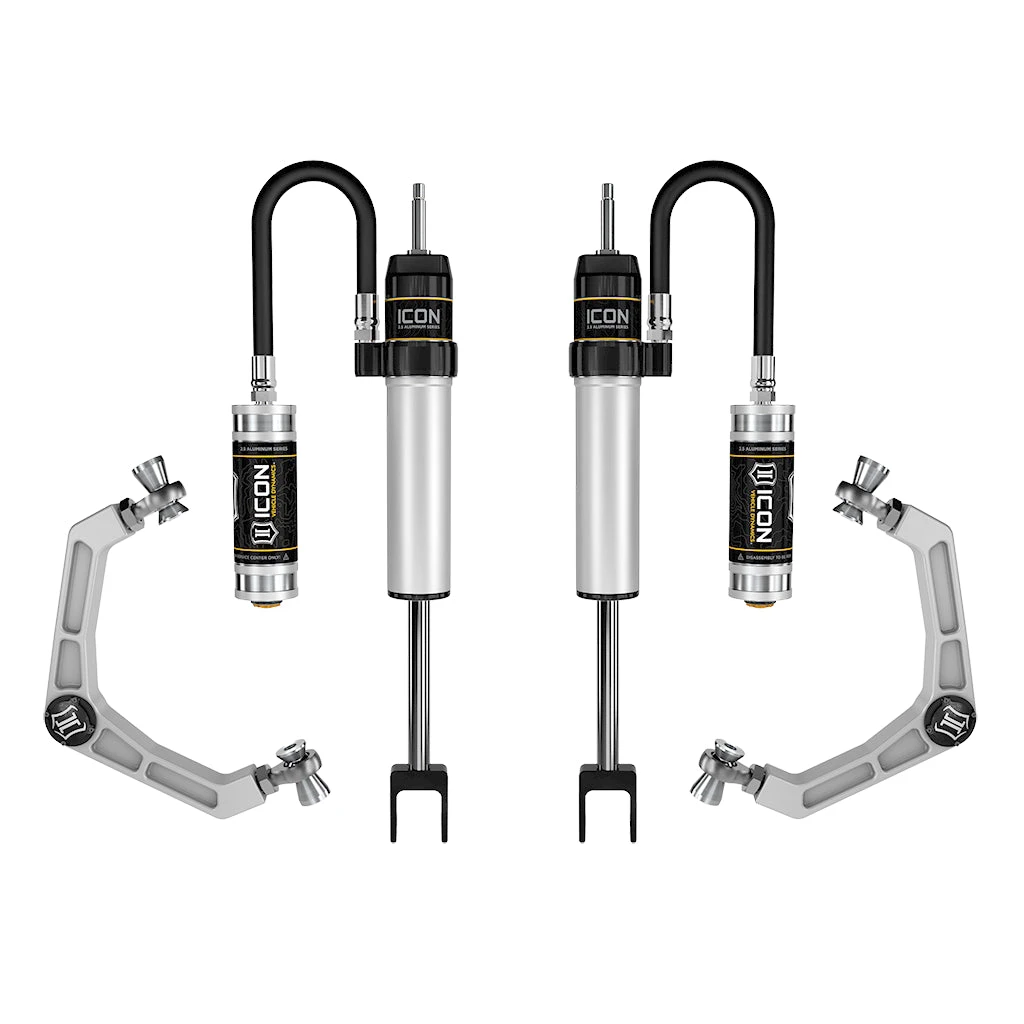

ICON 78734 GM 2500/3500 HD 0-2″ Lift 2.5 VS Shock System RR/CDCV Billet UCA

Take the performance of your 2020-Up GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint billet upper control arm kit. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. FK Rod End 3/4″ heim joints provide precise and smooth function throughout the range of travel while also allowing for additional camber and caster adjustment for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel when paired with our 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2020-Up GM HD.

FEATURES

• Features ICON’s Patented Delta Joint (U.S. Patent No. 10,731,700)
• PTFE Lined 7/8″ FK Rod Ends for improved response
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Nitrogen charged monotube design with remote reservoir
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Built in o-ring sealed dust cover cap
• Vehicle specific taper pin provides OE-like fitment
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 7/8″ diameter induction hardened, chrome plated shock shaft
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable
• CNC machined 6061 billet aluminum construction for light weight and exceptional strength
• Additional camber and caster adjustability allows for precise wheel alignment

SPECIFICATIONS

• Adjustable: No
• Ball Joint Included: Yes
• Ball Joint Mounting Type: Press In
• Ball Joint Stud Type: Threaded
• Bushing Color: Gold
• Bushing Material: Rod End Bearing
• Bushings Included: Yes
• Control Arm Color: Silver
• Control Arm Construction: Billet
• Control Arm Material: Aluminum
• Finish: Powdercoated
• Grade Type: Performance
• Grease Fitting Included: yes
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Pre-Greased: Yes
• Service Parts: 614520 – DELTA JOINT INSTALL ADAPTER AND SHIM
• Suspension Grade Type: Performance

TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5.5″ Backspace / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5.5″ Backspace / 12mm Offset
• Recommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
• The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended.
