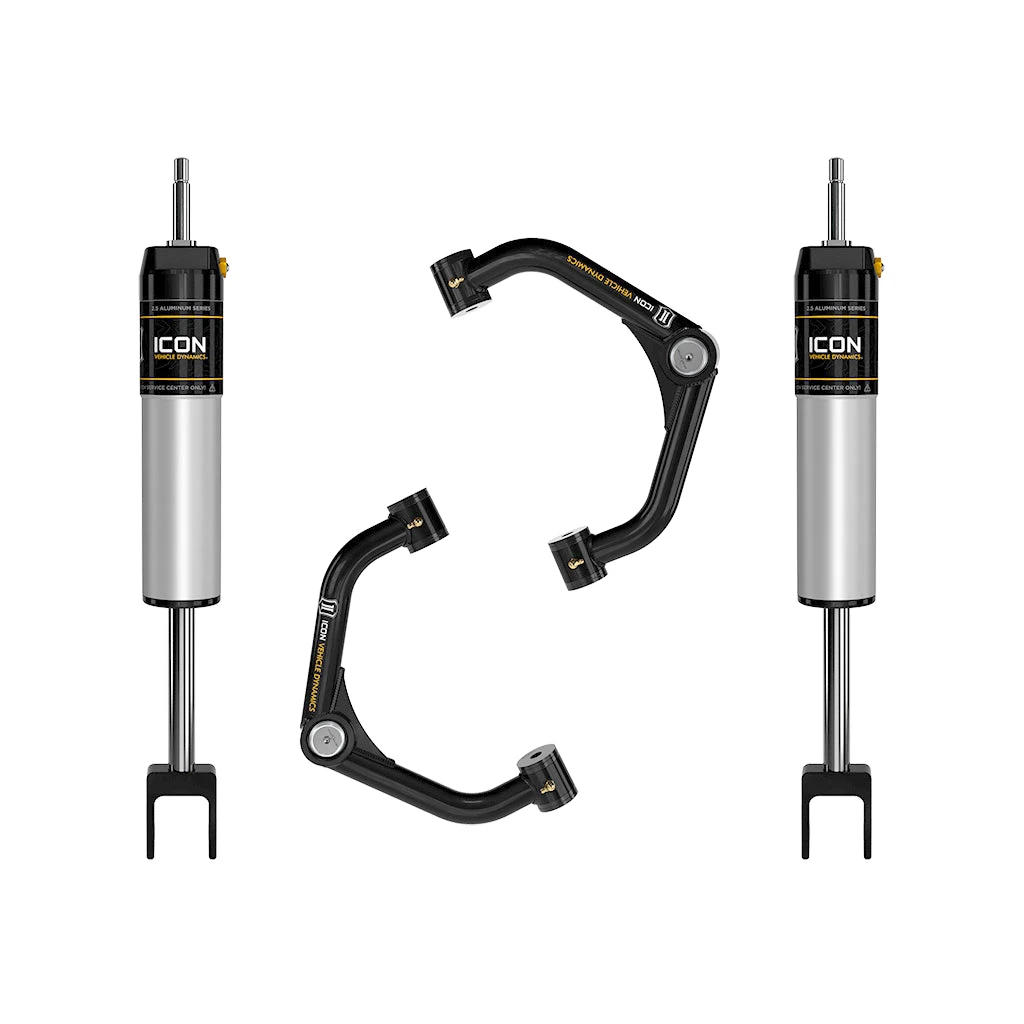

ICON 78732T GM 2500/3500 HD 0-2″ Lift 2.5 VS Shock System Tubular UCA

To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.

FEATURES

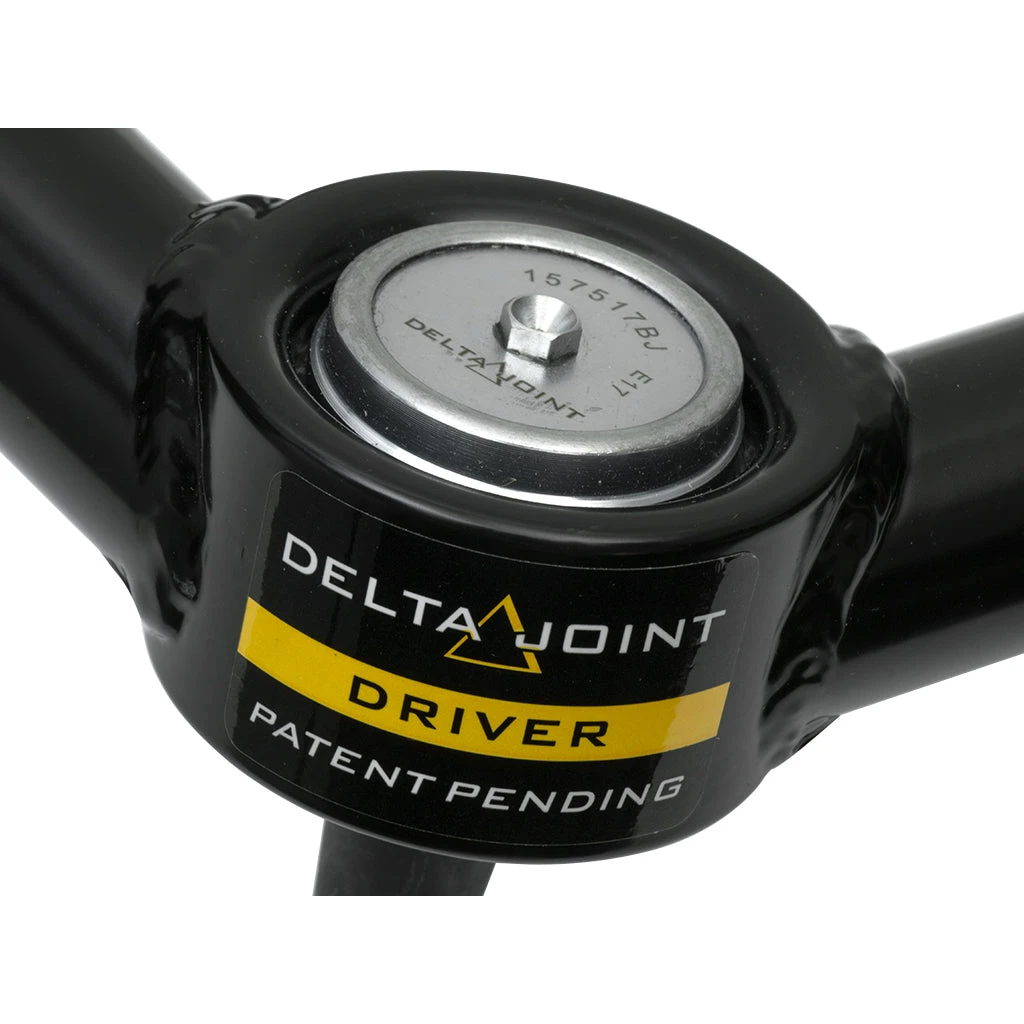

• Features ICON’s Patented Delta Joint (U.S. Patent No. 10,731,700)
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 7/8″ diameter induction hardened, chrome plated shock shaft
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable
• 1026 DOM Steel Construction
• CNC Bent Tubing
• CNC Machined Bushing Housings and Sleeves
• Built-In Caster Correction
• Serviceable Dual Stage Bushings
• Black Semi-Gloss Powder Coat Finish
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Nitrogen charged monotube design with internal reservoir

SPECIFICATIONS

• Adjustable: No
• Adjustable Control Arm: No
• Ball Joint Included: Yes
• Ball Joint Mounting Type: Press In
• Ball Joint Stud Type: Threaded
• Bushing Color: Black
• Bushing Material: Polyurethane
• Bushings Included: Yes
• Control Arm Color: Black
• Control Arm Construction: Tubular
• Control Arm Material: DOM Steel
• Finish: Powdercoated
• Grade Type: Performance

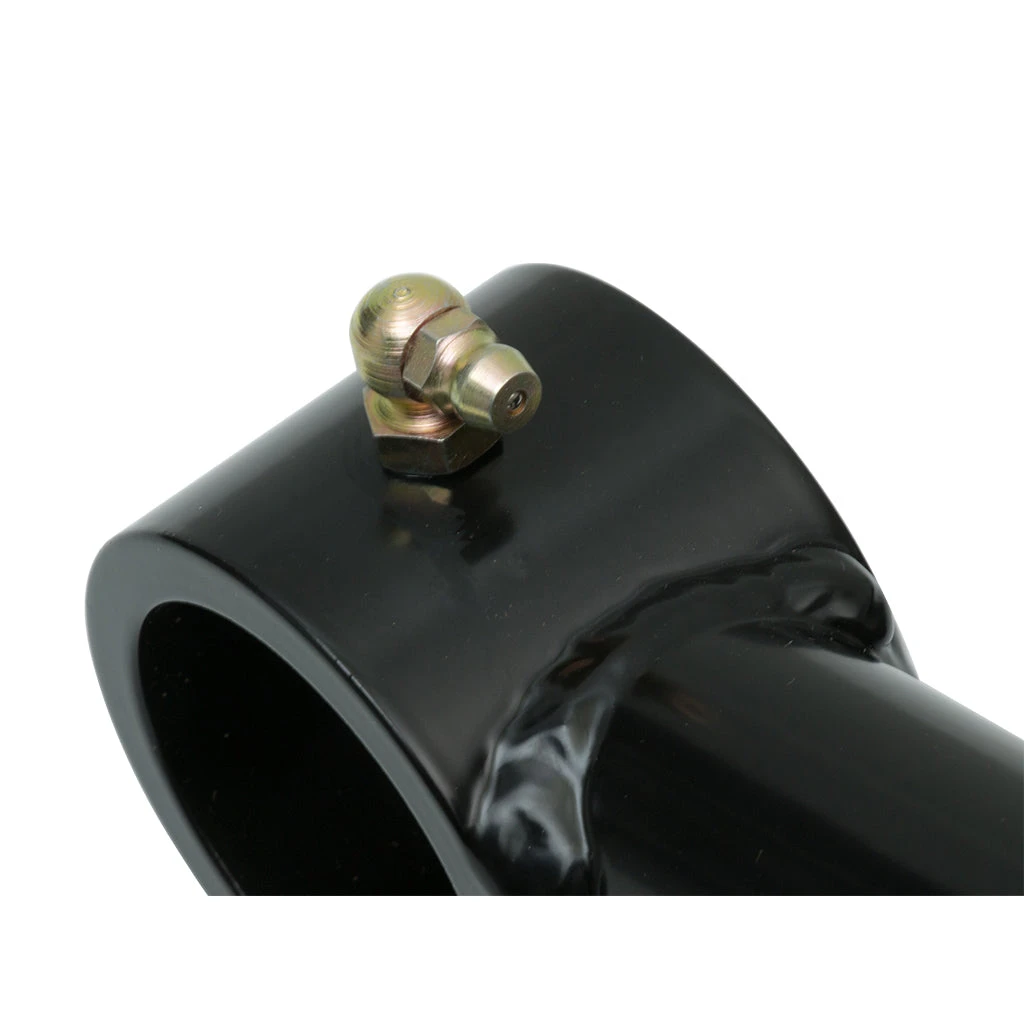

• Grease Fitting Included: yes
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Pre-Greased: No
• Service Parts: 614519 – DELTA JOINT INSTALL PRESS ADAPTER TUBE
• Suspension Grade Type: Performance

TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5.5″ Backspace / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5.5″ Backspace / 12mm Offset
• Recommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
• The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended.
