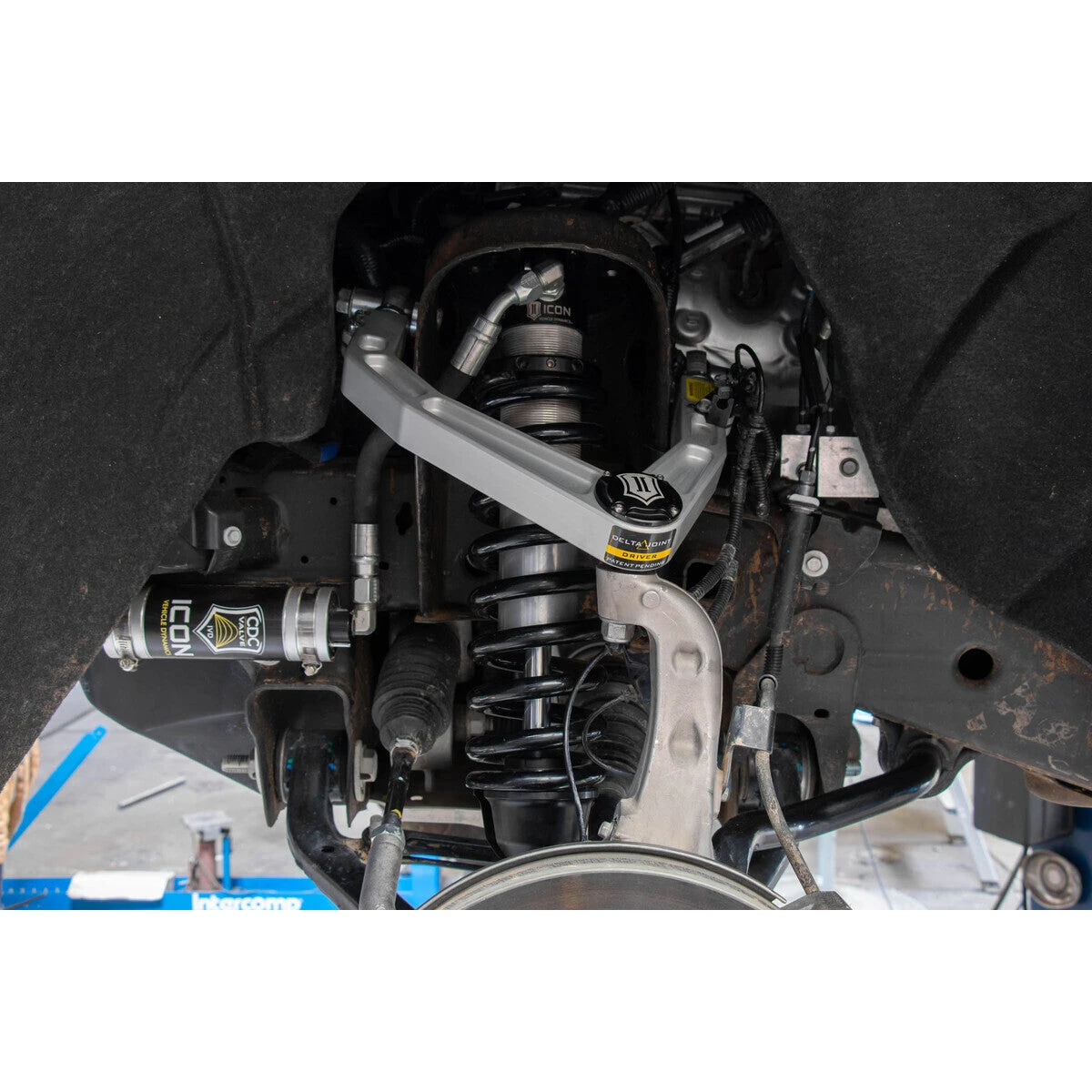

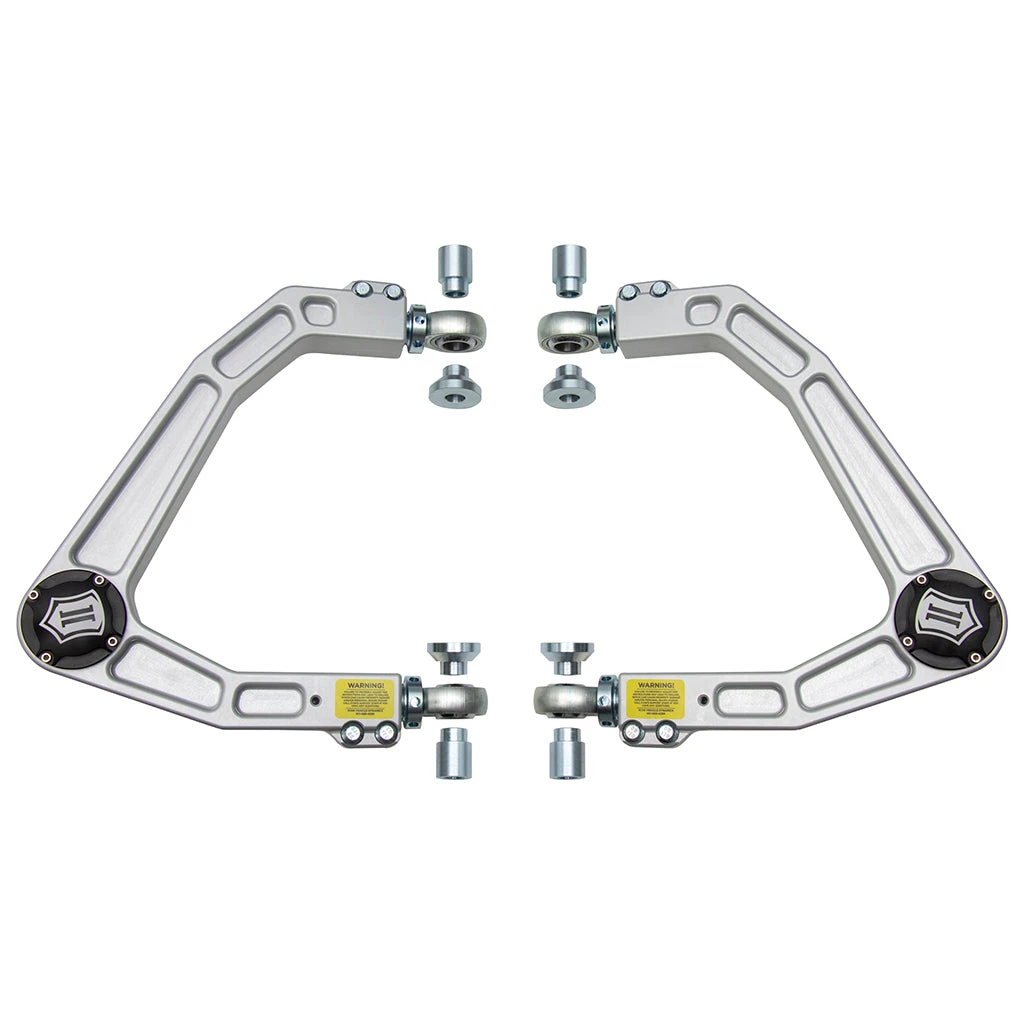

ICON 78720DJ GM 1500 Billet Upper Control Arm/Delta Joint Kit

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2019-2023 GM Silverado/Sierra 1500 with corrected front-end geometry, adjustable camber and caster, and improved suspension component clearance. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. Replacing the OE ball joint with the available ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 7/8″ Heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2019-2023 GM 1500 truck.

FEATURES

• CNC machined 6061 billet aluminum construction for light weight and exceptional strength
• Features ICON’s Patented Delta Joint (U.S. Patent No. 10,731,700)
• Camber and caster adjustability allows for precise wheel alignment
• ICON double adjuster sleeves allow for on-vehicle adjustment
• Vehicle specific taper pin provides OE-like fitment
• PTFE Lined 7/8″ FK Rod Ends for improved response
• Built in o-ring sealed dust cover cap

SPECIFICATIONS

• Adjustable: Yes
• Ball Joint Included: Yes
• Ball Joint Mounting Type: Press In
• Ball Joint Stud Type: Threaded
• Bushing Material: Rod End Bearing
• Bushings Included: Yes
• Control Arm Color: Silver
• Control Arm Construction: Billet
• Control Arm Material: Aluminum
• Finish: Anodized
• Grade Type: Performance
• Grease Fitting Included: yes
• Mounting Hardware Included: Yes
• Pre-Greased: No
• Service Parts: 614519 – DELTA JOINT INSTALL PRESS ADAPTER TUBE
• Suspension Grade Type: Performance

TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5″ Backspace / 0mm Offset
• Recommended Aftermarket Tires (Silverado): 35″x12.50″ (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Tires (Sierra): 34″x12.00″ (Minor fender trimming and modifications may be required)
• Trimming of the upper control arm stops required or down travel will be limited by upper arm stop
• Compatible with 0-3.5″ of front lift over stock on most models. Compatible with 0-1.5″ of front lift over stock on Silverado 1500 Trail Boss and Sierra 1500 AT4 models.
• Not compatible with models equipped with Adaptive Ride Control (ARC)
• Not compatible Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models
• Not compatible with models equipped with torsion bar front springs
