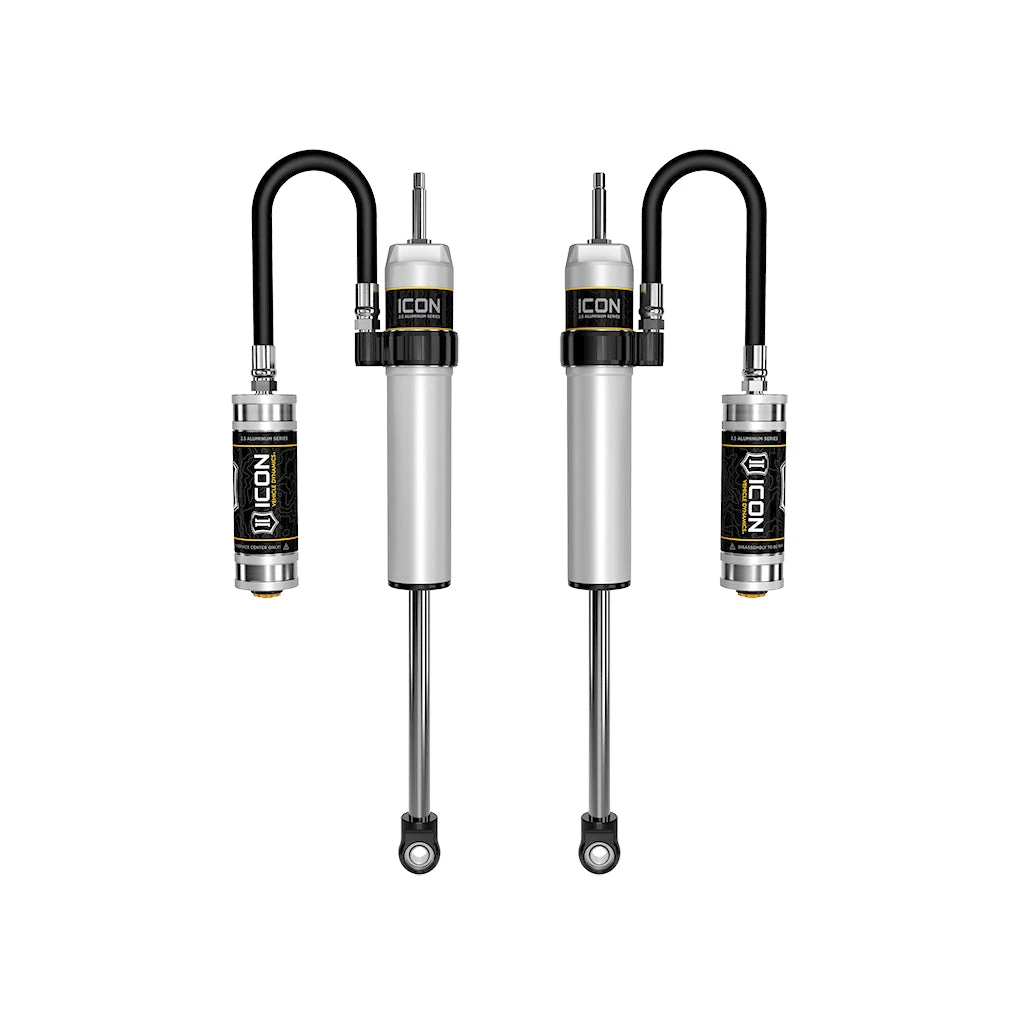

ICON 77832P GM 2500/3500 HD 0-2″ Lift Front Ext Travel 2.5 VS RR Shocks Pair

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

FEATURES

• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8″ diameter induction hardened, chrome plated shock shaft
• Polyurethane bushings and forged steel mounting stems for OE factory type fitment
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)

SPECIFICATIONS

• Adjustable: NO
• Boot Included: NO
• Bore Diameter (IN): 2.25
• Cylinder Color: Silver
• Cylinder Material: Steel
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: EYELET
• Mounting Hardware Included: Yes
• Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
• Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 257337 – 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
• Service Parts: 611006 – 9/16 HD STEM BUSHING KIT
• Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
• Shaft Diameter (IN): 0.875
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Tube Outside Diameter (IN): 2.5
• Upper Mount Type: Stem
• Upper Mount Type: Mounting Plate

TECH NOTES

• Aftermarket upper control arms with high angle ball joint required for install
