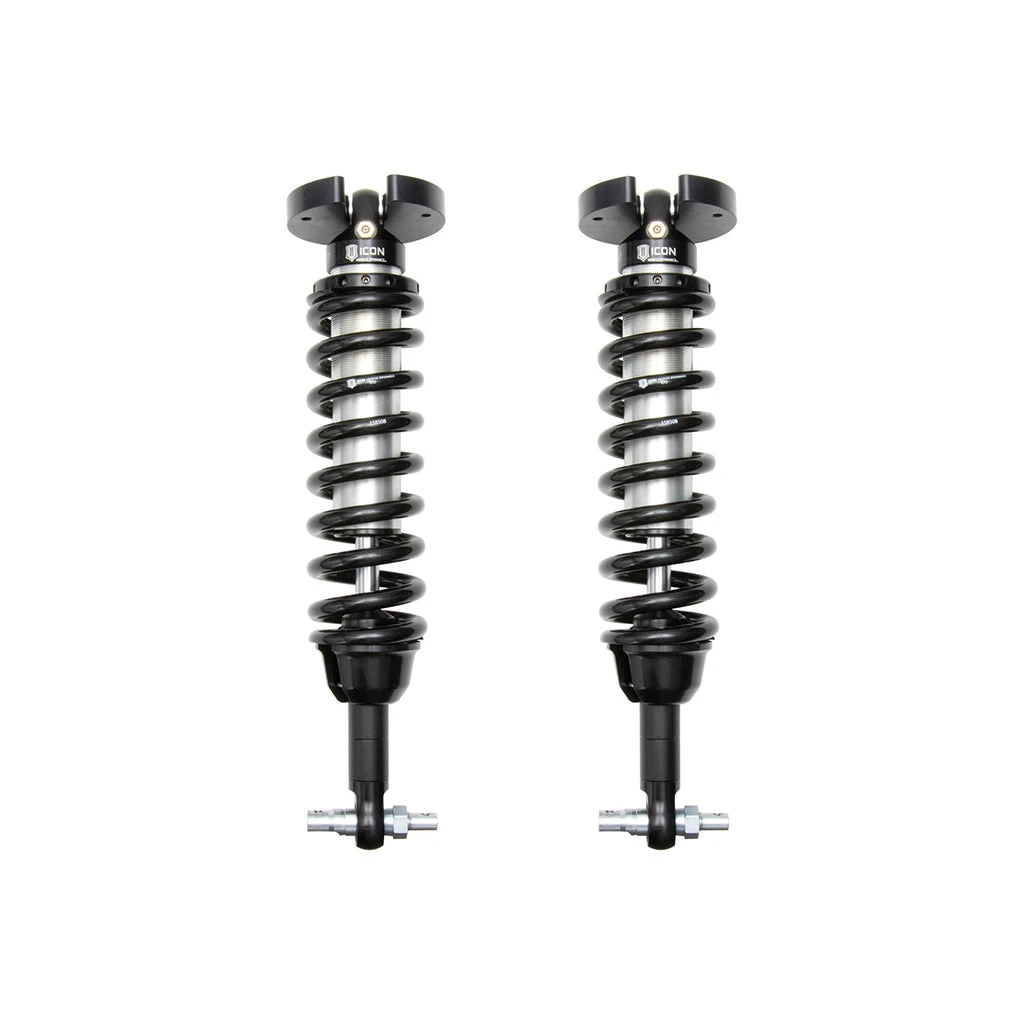

ICON 71606 GM 1500 1.5-3.5″ Lift Front 2.5 VS Extended Travel Coilover Kit

ICON’s Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.

FEATURES

• Adjustable coilovers yield 1.5-3.5″ of front lift height over stock
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered Eibach coil springs are guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated shock body with 7/8″ shaft
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

SPECIFICATIONS

• Adjustable Damping: NO
• Adjustable Height: Yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• Material: Aluminum
• Material: Steel
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: NO
• Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252004 – ECONOMY NEEDLE CHARGING TOOL
• Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
• Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252010 – 2.5 IFP REBUILD KIT
• Service Parts: 257339 – 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
• Service Parts: 611019 – COILOVER HARDWARE KIT PAIR
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5″ Backspace / 0mm Offset
• Recommended Aftermarket Tires (Silverado): 35″x12.50″ (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Tires (Sierra): 34″x12.00″ (Minor fender trimming and modifications may be required)
• Aftermarket front upper control arms required for installation. ICON Part numbers 78620DJ or 78720DJ recommended.
• 2019-UP Chevrolet Silverado Trail Boss and 2019-UP GMC Sierra 1500 AT4 lift height range 0-1.5″ over stock
• Not compatible with models equipped with Adaptive Ride Control (ARC)
• Not compatible with models equipped with 4-cylinder engine
• Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models
• Models equipped with 6-cylinder diesel engine will have lift height adjustment range reduced by approximately .5″
• Not compatible with models equipped with torsion bar front springs
