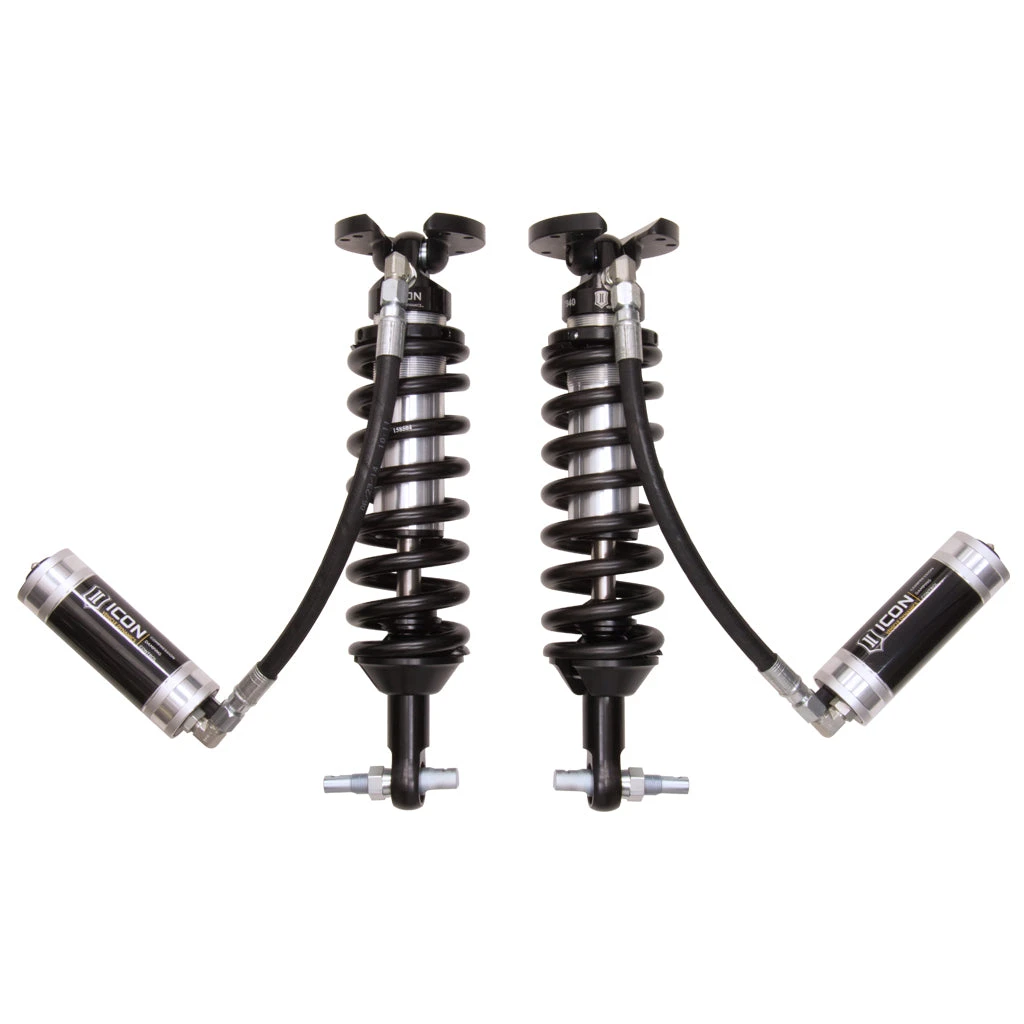

ICON 71555C GM 1500 1-2.5″ Lift Front 2.5 VS Remote Res/CDCV Coilover Kit

SPECIFICATIONS

• Adjustable Damping: Yes
• Adjustable Height: yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• Material: Aluminum
• Material: Steel
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: Yes
• Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
• Service Parts: 257306 – 7/8 SHAFT 9.65 OAL, 5.40 TRAVEL
• Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 611019 – COILOVER HARDWARE KIT PAIR
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5″ Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
• Installation of ICON Delta Joint upper control arms recommended. Shock length requires trimming of factory droop stop to retain stock upper control arms.
• Not compatible with models equipped Magnetic Ride Control
• Not compatible with Hybrid models
