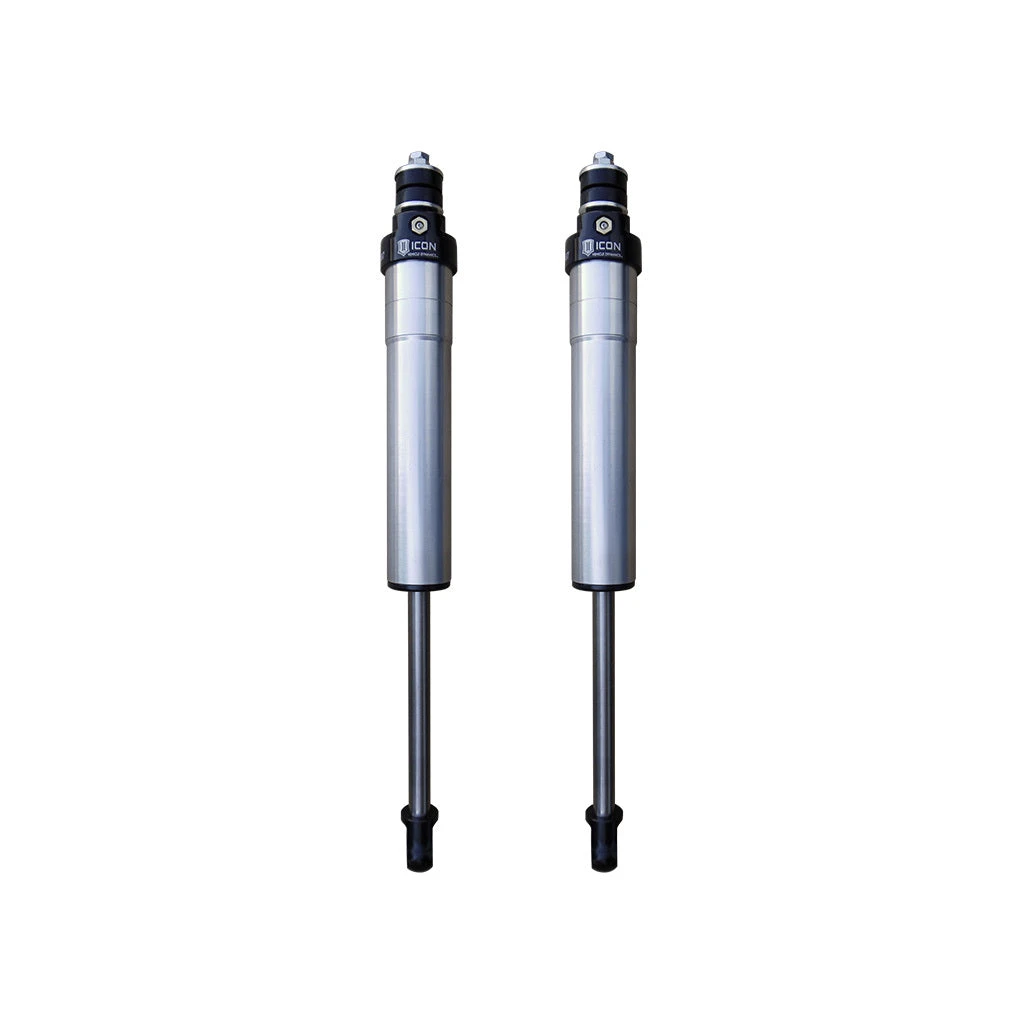

ICON 67620P Ford F250/F350 SD 4WD 7″ Lift Front 2.5 VS Shocks Pair

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.

FEATURES

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
• Nitrogen charged monotube design with internal reservoir
• CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 6061 aircraft grade aluminum CNC machined components
• PTFE lined spherical bearings and application specific mounting hardware
• 100% Revalveable
• 7/8″ diameter induction hardened, chrome plated shock shaft
• 100% Rebuildable
• Polyurethane bushings and forged steel mounting stems for OE factory type fitment

SPECIFICATIONS

• Adjustable: NO
• Boot Included: NO
• Bore Diameter (IN): 2.25
• Cylinder Color: Silver
• Cylinder Material: Steel
• Damping Type: Oil
• External Reservoir: NO
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: EYELET
• Mounting Hardware Included: Yes
• Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252004 – ECONOMY NEEDLE CHARGING TOOL
• Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
• Service Parts: 611006 – 9/16 HD STEM BUSHING KIT
• Service Parts: 252010 – 2.5 IFP REBUILD KIT
• Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 257340 – 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
• Shaft Diameter (IN): 0.875
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Tube Outside Diameter (IN): 2.5
• Upper Mount Type: Stem
