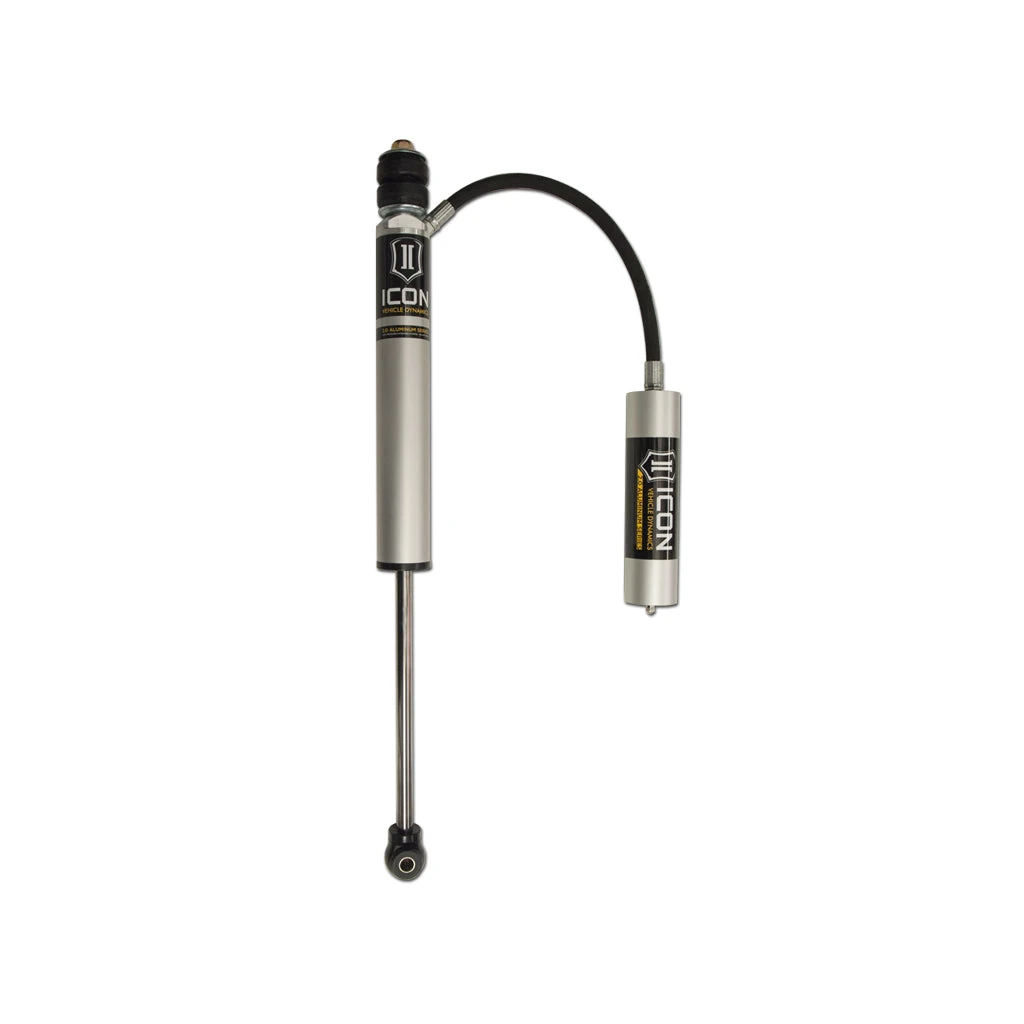

ICON 66512R Ford Super Duty 4WD 2.5″ Lift Front 2.0 VS Remote Reservoir Shock

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

FEATURES

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8″ chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• Application-specific reservoir mounting hardware
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• 100% rebuildable
• 100% revalveable

SPECIFICATIONS

• Adjustable: NO
• Body Diameter (IN): 2
• Boot Included: NO
• Bushing Color: Black
• Bushing Included: yes
• Bushing Material: Polyurethane
• Coil Over Springs Included: NO
• Dust Shield: NO
• Finish: Anodized
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: EYELET
• Mounting Hardware Included: Yes
• Remote Reservoir: Yes
• Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 254101G – 1/2 GALLON ICON PERFORMANCE SHOCK OIL
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Upper Mount Type: Stem

TECH NOTES

• Compatible with 2.5-3″ of front lift over stock on 2005-2019 Super Duty models
• Compatible with 2.5-3.75″ of front lift over stock on 2020-2023 Super Duty models without Tremor package. Not compatible with lift kits utilizing radius arm drop brackets.
• Compatible with 1.5-2.75″ of front lift over stock on 2020-2023 Super Duty models equipped with Tremor package. Not compatible with lift kits utilizing radius arm drop brackets.
• Can be installed as secondary shocks in OE location with ICON 2.5-3″ lift coilover conversions
• Shocks sold individually. A quantity of 2 are required per vehicle.
