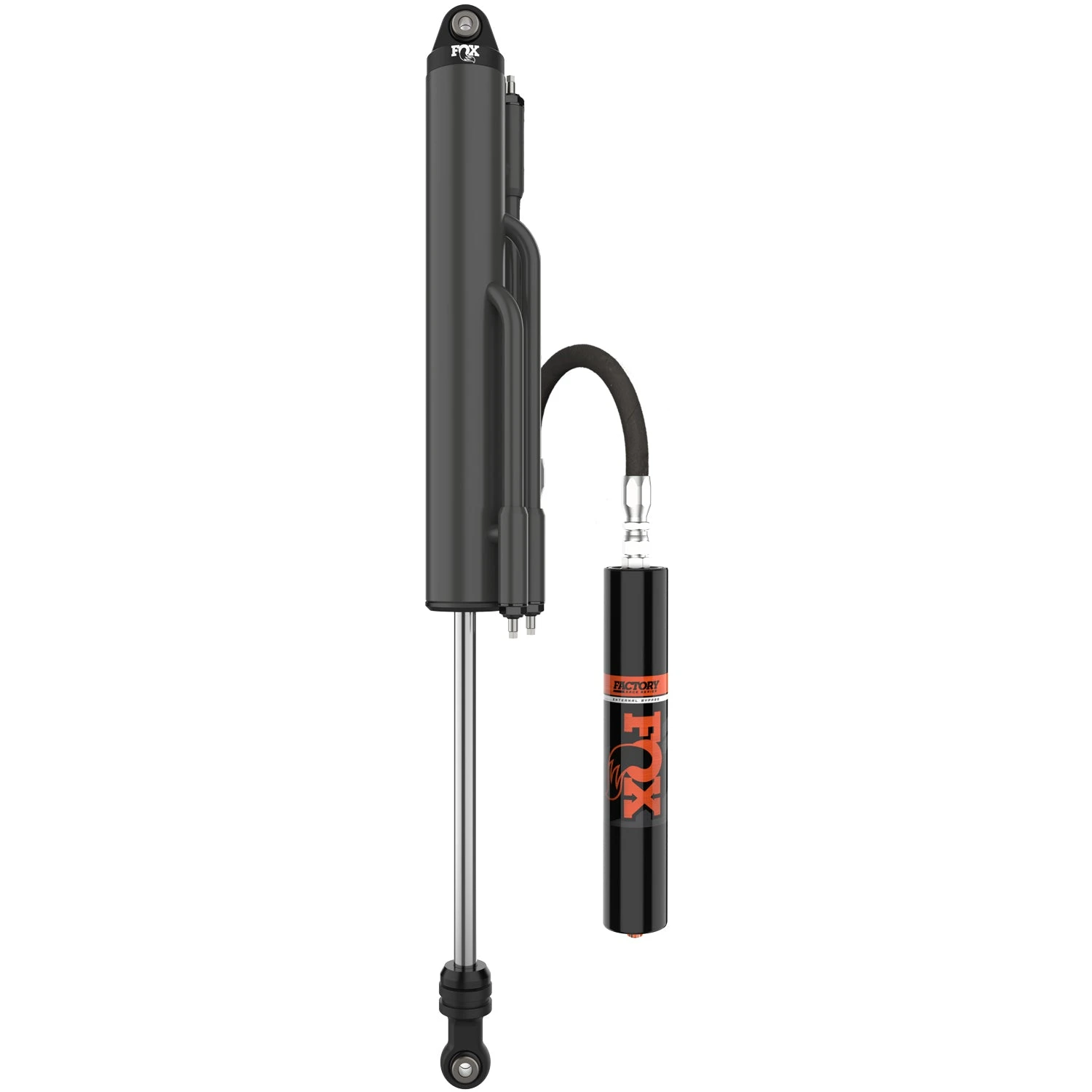

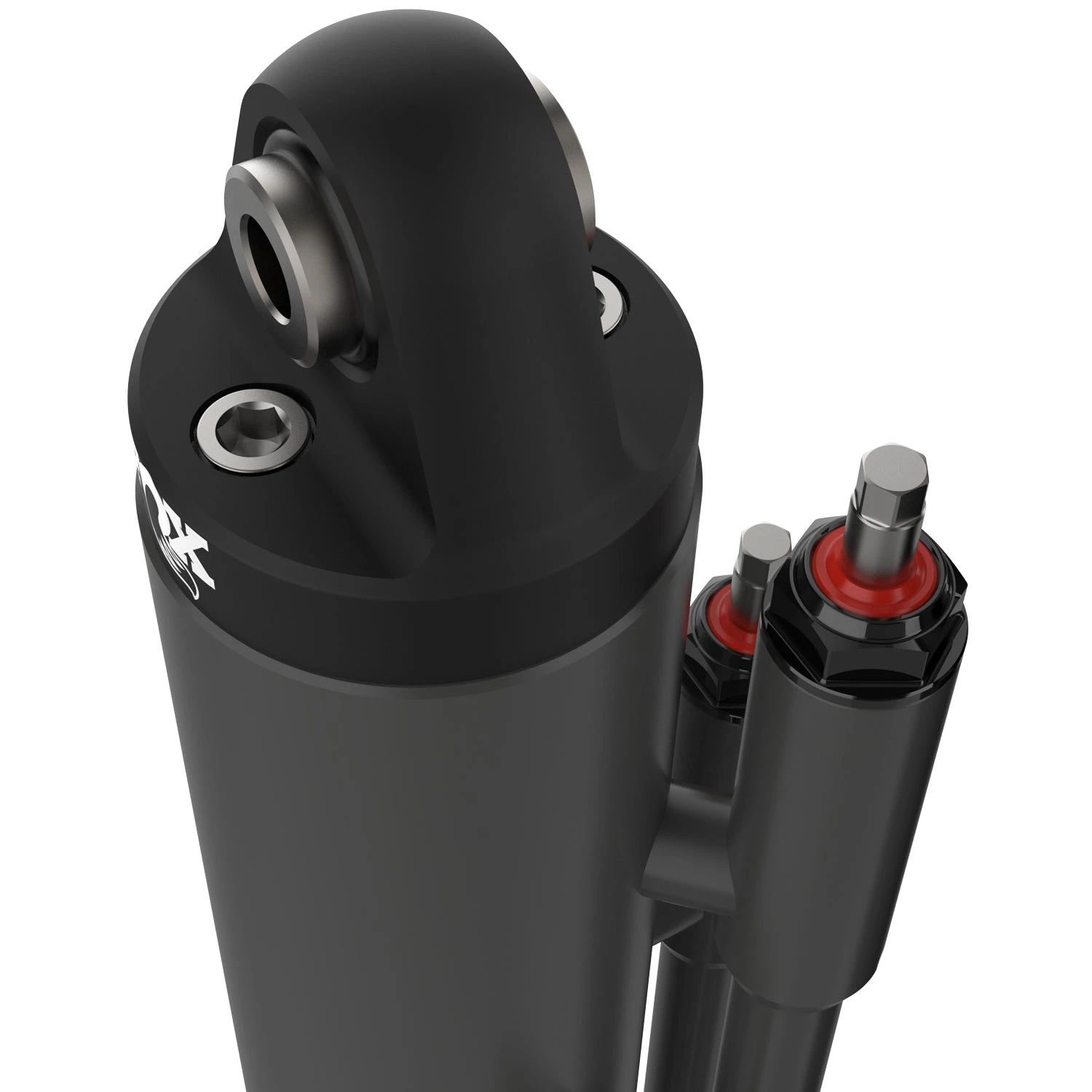

FOX 981-30-419-LFactory Race 3.0 X 16 External Bypass (4 Tube) Remote Shock (Left)

FOX 3.0 Shocks 981-30-418-L

Experience leading off-road performance with the FOX 3.0 Shocks 981-30-418-L for your vehicle. Engineered with position-sensitive damping technology, these shocks provide unparalleled control and comfort. Designed for extreme off-road conditions and everyday driving, the FOX 3.0 Shocks ensure your vehicle handles exceptionally well, providing a smoother, more controlled ride.

Features of the 981-30-418-L:

• 3.0″ Impact Extruded and CNC Machined 6061-T6 Hard-Anodized Aluminum Body: Offers superior resistance to corrosion while being lighter than steel, ensuring long-lasting durability and optimal performance.
• Hard-Anodized Durable Finish: Provides a tough, corrosion-resistant surface that stands up to harsh conditions.
• New Aluminum Finned Remote Reservoir with Recirculating Reservoir Bridge: Enhances heat dissipation to maintain optimal shock oil temperature for consistent damping performance.
• Black-Anodized CNC-Machined 6061-T6 Billet Aluminum Components: High-quality materials ensure strength, precision, and reliability.
• 7/8″ Hard Chrome Plated Heat-Treated Alloy Steel Shaft: Provides exceptional strength and resistance to wear and corrosion.
• Race-Developed High-Flow Piston Design: Ensures smooth and efficient damping performance.
• Application-Specific Valving: Tailored to maximize performance for your specific vehicle.
• Redundant Sealing Pack System: Includes a main seal, wiper seal, and scraper seal to prevent leaks and ensure consistent performance in harsh conditions.
• PTFE-Lined Heat-Treated Alloy Steel Spherical Bearings: Ensure quiet and smooth shock movement.
• Dual Speed Compression (DSC) Adjusters: Allow for tool-free high and low-speed compression adjustment, providing customizable damping.
• Machined 7075 Aluminum Reservoir Mounting Hardware and Offset Bottom Shock Mounts: Ensure secure and precise mounting.

Benefits of the 981-30-418-L:

• Race-Proven Technology: Utilizes the same components found in race-winning Trophy Truck shocks, providing superior performance and reliability.
• Enhanced Ride Quality: The advanced position-sensitive damping technology offers a plush, predictable ride over normal off-road driving conditions while ramping up damping force to counteract harsh bottom-outs or top-outs.
• Superior Control: Experience precise handling and stability, giving you confidence in any driving condition.
• Durability and Reliability: These shocks are designed to withstand the roughest environments and are built with high-quality materials and advanced technology.
• Adjustable Settings: The DSC adjusters allow for quick and easy customization of compression settings to match your driving style and terrain.

Specifications of the 981-30-418-L:

• Adjuster Type: External Bypass Clicker – Gen 2
• Body Diameter (in): 3
• Body Finish: FOX Grey Cerakote
• Body Material: Steel
• Bottom Mount: Eyelet
• Bypass Tubes: 4
• Compressed Length (in): 23.60
• Extended Length (in): 37.51
• Eyelet Length (in): 2.00
• Hose: -10 x 38.00
• Mounting: 1/2 x 1-1/2
• Reservoir Dimensions: 2.55 x 14.00
• Reservoir Type: Remote
• Series: Factory Race
• Shaft Size (in): 7/8
• Top Mount: Eyelet
• Travel (in): 13.91
• Type: External Bypass
• Valving: 807-24-600



Upgrade your vehicle with the FOX 3.0 Shocks 981-30-418-L and experience the ultimate in suspension performance and control. Perfect for both stock and lifted trucks and SUVs, these shocks provide the reliability and precision you need for any adventure.

For more information or to find the perfect fit for your vehicle, contact us at Shockwarehouse. We’re here to help you get the most out of your suspension system.
