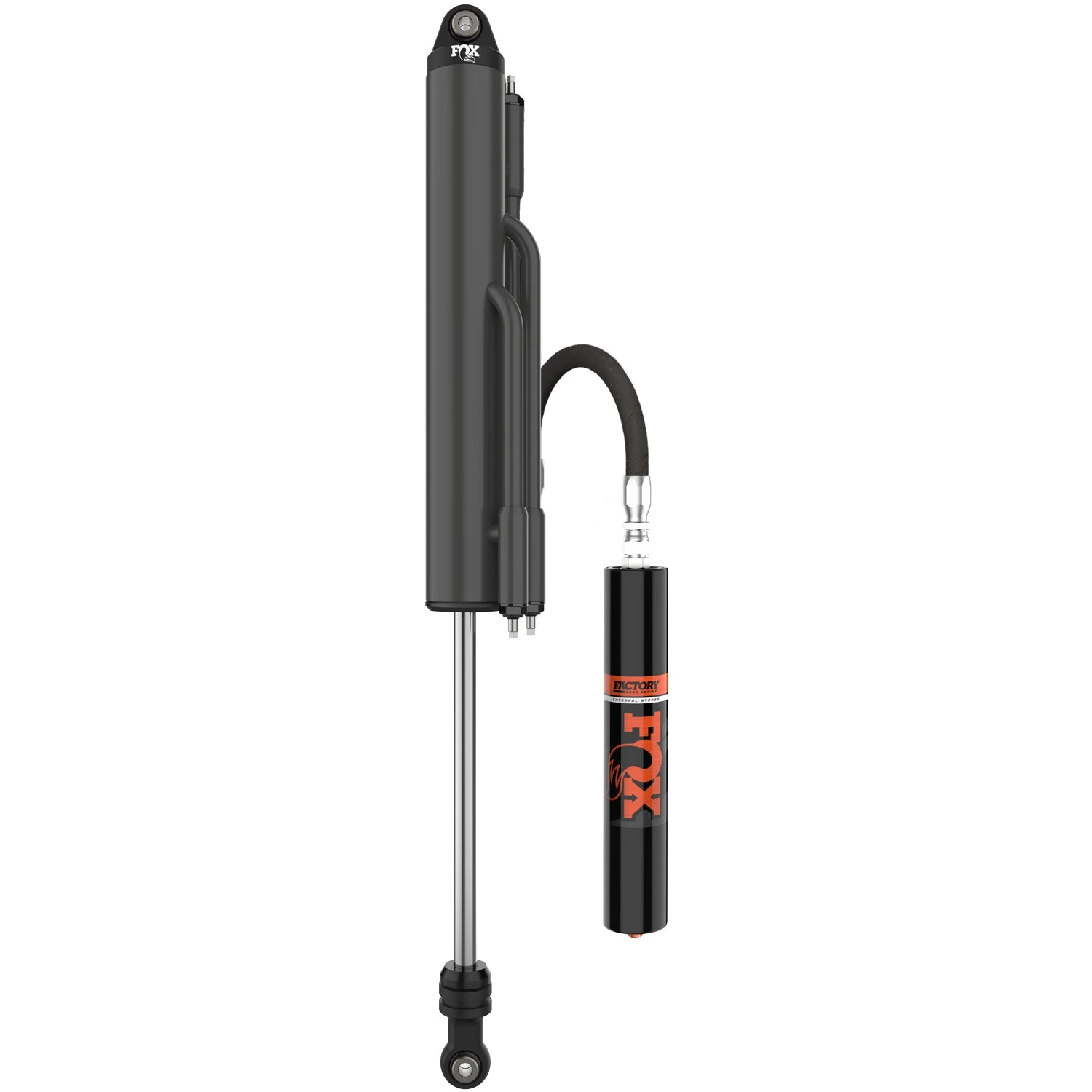

FOX 981-30-410-RFactory Race 3.0 X 18 External Bypass (3 Tube) Remote Shock (Right)

FOX 3.0 Shocks 981-30-409-R

Experience leading off-road performance with the FOX 3.0 Shocks 981-30-409-R for your vehicle. Engineered with position-sensitive damping technology, these shocks provide unparalleled control and comfort. Designed for extreme off-road conditions and everyday driving, the FOX 3.0 Shocks ensure your vehicle handles exceptionally well, providing a smoother, more controlled ride.

Features of the 981-30-409-R:

• 3.0″ Impact Extruded and CNC Machined 6061-T6 Hard-Anodized Aluminum Body: Offers superior resistance to corrosion while being lighter than steel, ensuring long-lasting durability and optimal performance.
• Hard-Anodized Durable Finish: Provides a tough, corrosion-resistant surface that stands up to harsh conditions.
• New Aluminum Finned Remote Reservoir with Recirculating Reservoir Bridge: Enhances heat dissipation to maintain optimal shock oil temperature for consistent damping performance.
• Black-Anodized CNC-Machined 6061-T6 Billet Aluminum Components: High-quality materials ensure strength, precision, and reliability.
• 7/8″ Hard Chrome Plated Heat-Treated Alloy Steel Shaft: Provides exceptional strength and resistance to wear and corrosion.
• Race-Developed High-Flow Piston Design: Ensures smooth and efficient damping performance.
• Application-Specific Valving: Tailored to maximize performance for your specific vehicle.
• Redundant Sealing Pack System: Includes a main seal, wiper seal, and scraper seal to prevent leaks and ensure consistent performance in harsh conditions.
• PTFE-Lined Heat-Treated Alloy Steel Spherical Bearings: Ensure quiet and smooth shock movement.
• Dual Speed Compression (DSC) Adjusters: Allow for tool-free high and low-speed compression adjustment, providing customizable damping.
• Machined 7075 Aluminum Reservoir Mounting Hardware and Offset Bottom Shock Mounts: Ensure secure and precise mounting.

Benefits of the 981-30-409-R:

• Race-Proven Technology: Utilizes the same components found in race-winning Trophy Truck shocks, providing superior performance and reliability.
• Enhanced Ride Quality: The advanced position-sensitive damping technology offers a plush, predictable ride over normal off-road driving conditions while ramping up damping force to counteract harsh bottom-outs or top-outs.
• Superior Control: Experience precise handling and stability, giving you confidence in any driving condition.
• Durability and Reliability: These shocks are designed to withstand the roughest environments and are built with high-quality materials and advanced technology.
• Adjustable Settings: The DSC adjusters allow for quick and easy customization of compression settings to match your driving style and terrain.

Specifications of the 981-30-409-R:

• Adjuster Type: External Bypass Clicker – Gen 2
• Body Diameter (in): 3
• Body Finish: FOX Grey Cerakote
• Body Material: Steel
• Bottom Mount: Eyelet
• Bypass Tubes: 3
• Compressed Length (in): 25.60
• Extended Length (in): 41.51
• Eyelet Length (in): 2.00
• Hose: -10 x 38.00
• Mounting: 1/2 x 1-1/2
• Reservoir Dimensions: 2.55 x 14.00
• Reservoir Type: Remote
• Series: Factory Race
• Shaft Size (in): 7/8
• Top Mount: Eyelet
• Travel (in): 15.91
• Type: External Bypass
• Valving: 807-24-600



Upgrade your vehicle with the FOX 3.0 Shocks 981-30-409-R and experience the ultimate in suspension performance and control. Perfect for both stock and lifted trucks and SUVs, these shocks provide the reliability and precision you need for any adventure.
