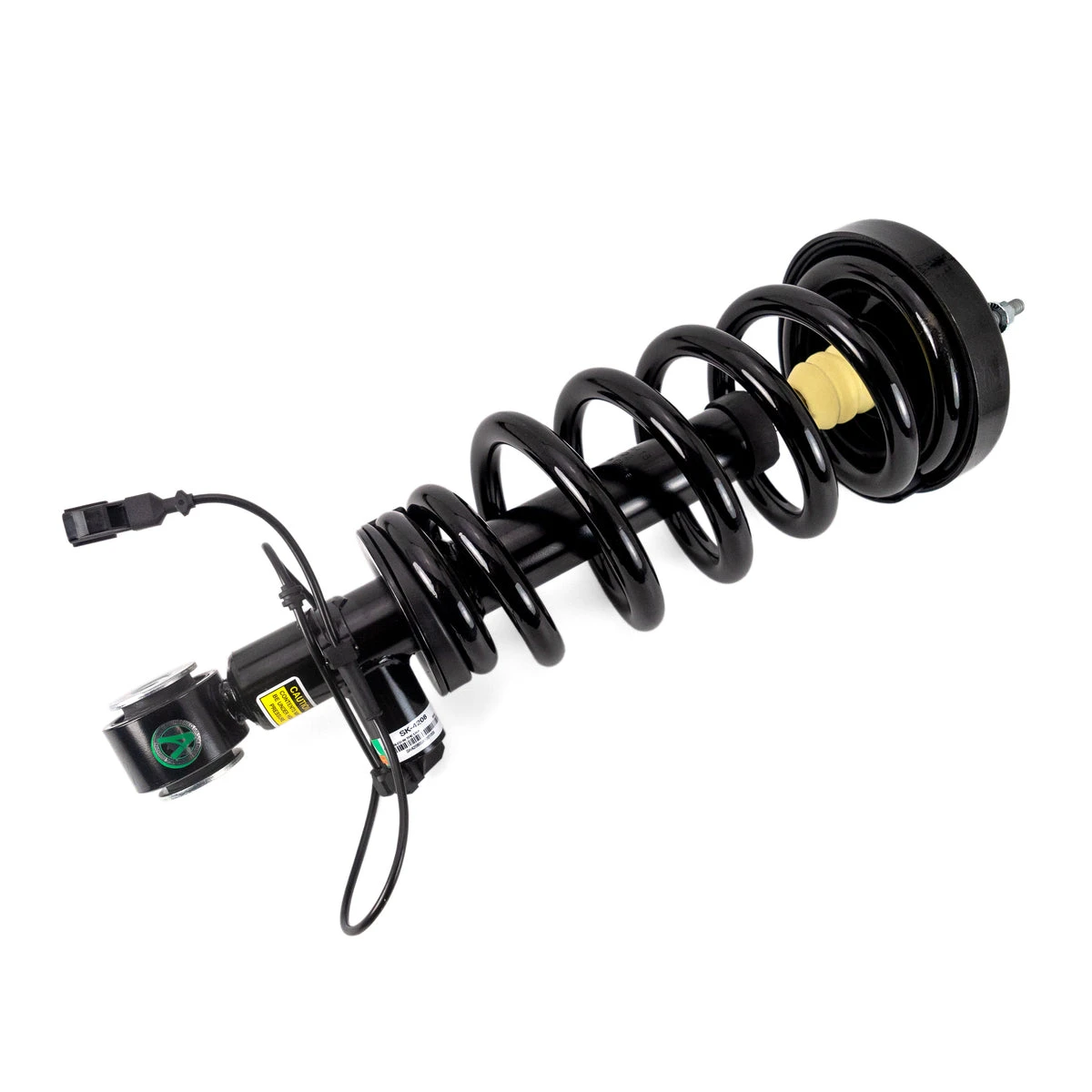

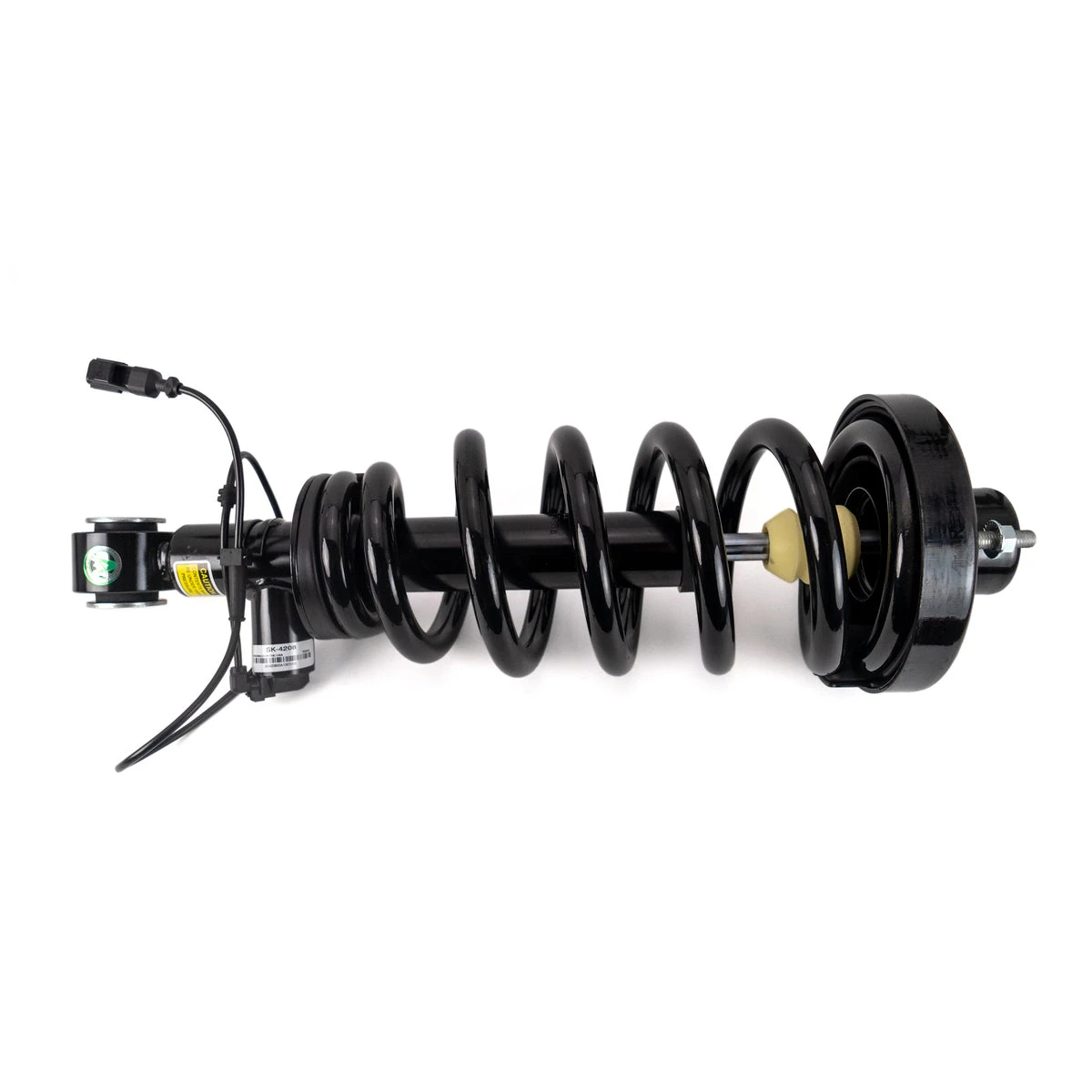

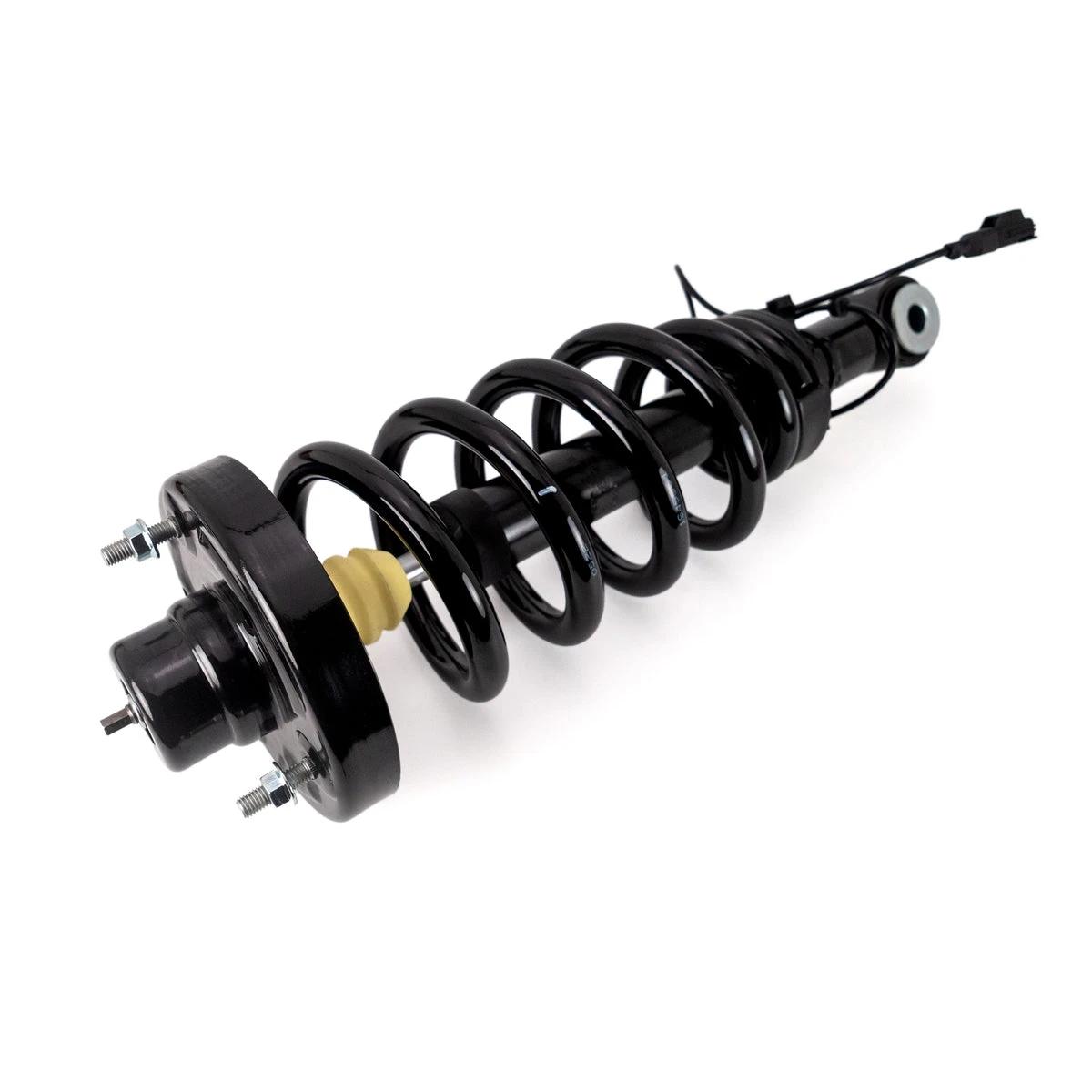

Arnott SK-4208 Rear Right Coil Strut Assembly Lincoln Navigator (U554 Chassis)

Arnott’s exclusive strut (SK-4208) manufactured for the 2022 and up Lincoln Navigator (U554) rear right side. This passive strut design delivers the stability, handling, control and comfort of the original OE strut without any external commands from the vehicle. Arnott engineers have determined and tested the optimal internal strut settings to mimic the OE performance. Arnott recommends replacing these struts in pairs.

FEATURES

• Converts active to passive
• Exclusively for the Lincoln Navigator (U554)
• Fits REAR RIGHT
• Custom-valved shock adapted to driving style
• Improved seals to prevent leaks
• Electronic to passive shock technology
• Engineered and assembled in the USA
• Replace in Pairs

SPECIFICATIONS

• Adjustable: No
• Adjustable Damping: No
• Air Adjustable: NO
• Air Ride Suspension: NO
• Bearing Plate Included: YES
• Body End Measuring Point: Center Eye
• Body/housing Diameter: 50
• Boot Color: Black
• Boot/dust Shield Included: YES
• Coil Over Springs Included: YES
• Dust Shield Material: Plastic
• Gas Charged: YES
• Internal Damper Type: Hydraulic
• Lower Mount Type: Loop Bushing
• Lower Mounting Isolator Included: YES
• Mounting Hardware Included: YES
• Progressive Spring Rate: No
• Shock Absorber Rod End Measuring Point: Shoulder of Stud
• Shock Spring Assisted: YES
• Shock/strut Design: Twin-tube
• Spring Isolators Included: YES
• Spring Rate Type: Linear
• Spring Seat Included: YES
• Springs Included: YES
• Upper Mount Type: Special
• Upper Mounting Isolator Included: YES
